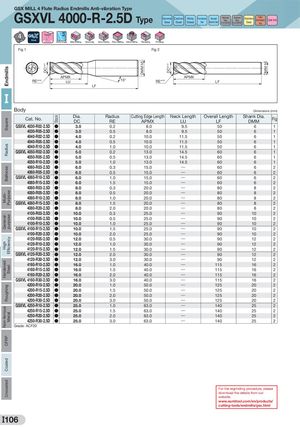

Общий каталог Sumitomo 2019 - 2020 - страница 790

EndmillsSquareRadiusBallnoseMulti-PurposeGeneral-purposeHighEfficiencyHardene dSteelRoughingNon-ferrousMetalCFRPCoatedUncoated ±0.01 DC Stock DMM h5 ±0.01 DC DMM h5 GSX MILL 4 Flute Radius Endmills Anti-vibration Type GSXVL 4000-R-2.5D Type General CarbonSteelSteelAlloySteelPre-hardenedSteelTemperedSteel/Die SteelHardenedSteel45 to 55HRCHardenedSteel55 to 60HRCStainlessSteelTi Alloy /Heat ResistantAlloyCast Iron Corner Flutes Coat Helix Angle Side Milling Grooving Groove Finishing Face Milling Helical Milling Ramping Profiling Fig 1 Fig 2 APMX APMX RE±0.02 LU 15° RE±0.02 LF LF I Body Dimensions (mm) Cat. No. Dia.DC Radius RE Cutting Edge Length Neck Length Overall LengthAPMXLULF Shank Dia.DMM Fig GSXVL 4030-R02-2.5D ● 3.0 0.2 8.0 9.5 50 6 1 GSXVL 4030-R05-2.5D ● 3.0 0.5 8.0 9.5 50 6 1 GSXVL 4040-R02-2.5D ● 4.0 0.2 10.0 11.5 50 6 1 GSXVL 4040-R05-2.5D ● 4.0 0.5 10.0 11.5 50 6 1 GSXVL 4040-R10-2.5D ● 4.0 1.0 10.0 11.5 50 6 1 GSXVL 4050-R02-2.5D ● 5.0 0.2 13.0 14.5 60 6 1 GSXVL 4050-R05-2.5D ● 5.0 0.5 13.0 14.5 60 6 1 GSXVL 4050-R10-2.5D ● 5.0 1.0 13.0 14.5 60 6 1 GSXVL 4060-R03-2.5D ● 6.0 0.3 15.0 ― 60 6 2 GSXVL 4060-R05-2.5D ● 6.0 0.5 15.0 ― 60 6 2 GSXVL 4060-R10-2.5D ● 6.0 1.0 15.0 ― 60 6 2 GSXVL 4060-R15-2.5D ● 6.0 1.5 15.0 ― 60 6 2 GSXVL 4080-R03-2.5D ● 8.0 0.3 20.0 ― 80 8 2 GSXVL 4080-R05-2.5D ● 8.0 0.5 20.0 ― 80 8 2 GSXVL 4080-R10-2.5D ● 8.0 1.0 20.0 ― 80 8 2 GSXVL 4080-R15-2.5D ● 8.0 1.5 20.0 ― 80 8 2 GSXVL 4080-R20-2.5D ● 8.0 2.0 20.0 ― 80 8 2 GSXVL 4100-R03-2.5D ● 10.0 0.3 25.0 ― 90 10 2 GSXVL 4100-R05-2.5D ● 10.0 0.5 25.0 ― 90 10 2 GSXVL 4100-R10-2.5D ● 10.0 1.0 25.0 ― 90 10 2 GSXVL 4100-R15-2.5D ● 10.0 1.5 25.0 ― 90 10 2 GSXVL 4100-R20-2.5D ● 10.0 2.0 25.0 ― 90 10 2 GSXVL 4120-R05-2.5D ● 12.0 0.5 30.0 ― 90 12 2 GSXVL 4120-R10-2.5D ● 12.0 1.0 30.0 ― 90 12 2 GSXVL 4120-R15-2.5D ● 12.0 1.5 30.0 ― 90 12 2 GSXVL 4120-R20-2.5D ● 12.0 2.0 30.0 ― 90 12 2 GSXVL 4120-R30-2.5D ● 12.0 3.0 30.0 ― 90 12 2 GSXVL 4160-R10-2.5D ● 16.0 1.0 40.0 ― 115 16 2 GSXVL 4160-R15-2.5D ● 16.0 1.5 40.0 ― 115 16 2 GSXVL 4160-R20-2.5D ● 16.0 2.0 40.0 ― 115 16 2 GSXVL 4160-R30-2.5D ● 16.0 3.0 40.0 ― 115 16 2 GSXVL 4200-R10-2.5D ● 20.0 1.0 50.0 ― 125 20 2 GSXVL 4200-R15-2.5D ● 20.0 1.5 50.0 ― 125 20 2 GSXVL 4200-R20-2.5D ● 20.0 2.0 50.0 ― 125 20 2 GSXVL 4200-R30-2.5D ● 20.0 3.0 50.0 ― 125 20 2 GSXVL 4250-R10-2.5D ● 25.0 1.0 63.0 ― 140 25 2 GSXVL 4250-R15-2.5D ● 25.0 1.5 63.0 ― 140 25 2 GSXVL 4250-R20-2.5D ● 25.0 2.0 63.0 ― 140 25 2 GSXVL 4250-R30-2.5D ● 25.0 3.0 63.0 ― 140 25 2 Grade: ACF20 For the regrinding procedure, please download the details from our website. www.sumitool.com/en/products/ cutting-tools/endmills/gsx.html I106
