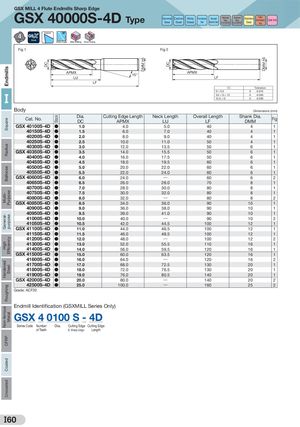

EndmillsSquareRadiusBallnoseMulti-PurposeGeneral-purposeHighEfficiencyHardene dSteelRoughingNon-ferrousMetalCFRPCoatedUncoated DC Stock DMM h5 DC DMM h5 GSX MILL 4 Flute Endmills Sharp Edge GSX 40000S-4D Type General CarbonSteelSteelAlloySteelPre-hardenedSteelTemperedSteel/Die SteelHardenedSteel45 to 55HRCHardenedSteel55 to 60HRCStainlessSteelTi Alloy /Heat ResistantAlloyCast Iron Corner Flutes Coat Helix Angle Side Milling Groove Finishing Fig 1 Fig 2 APMX APMX15° LU LF LF DC Tolerance D ≤ 3.0 0 -0.015 I 3.0 < D ≤ 12 0 -0.02012.0 < D0-0.030 Body Dimensions (mm) Cat. No. Dia.DC Cutting Edge Length Neck Length Overall LengthAPMXLULF Shank Dia.DMM Fig GSX 40100S-4D ● 1.0 4.0 5.0 40 4 1 GSX 40150S-4D ● 1.5 6.0 7.0 40 4 1 GSX 40200S-4D ● 2.0 8.0 9.0 40 4 1 GSX 40250S-4D ● 2.5 10.0 11.0 50 4 1 GSX 40300S-4D ● 3.0 12.0 13.5 50 6 1 GSX 40350S-4D ● 3.5 14.0 15.5 50 6 1 GSX 40400S-4D ● 4.0 16.0 17.5 50 6 1 GSX 40450S-4D ● 4.5 18.0 19.5 60 6 1 GSX 40500S-4D ● 5.0 20.0 22.0 60 6 1 GSX 40550S-4D ● 5.5 22.0 24.0 60 6 1 GSX 40600S-4D ● 6.0 24.0 ― 60 6 2 GSX 40650S-4D ● 6.5 26.0 28.0 70 8 1 GSX 40700S-4D ● 7.0 28.0 30.0 80 8 1 GSX 40750S-4D ● 7.5 30.0 32.0 80 8 1 GSX 40800S-4D ● 8.0 32.0 ― 80 8 2 GSX 40850S-4D ● 8.5 34.0 36.0 90 10 1 GSX 40900S-4D ● 9.0 36.0 38.0 90 10 1 GSX 40950S-4D ● 9.5 39.0 41.0 90 10 1 GSX 41000S-4D ● 10.0 40.0 ― 90 10 2 GSX 41050S-4D ● 10.5 42.0 44.5 100 12 1 GSX 41100S-4D ● 11.0 44.0 46.5 100 12 1 GSX 41150S-4D ● 11.5 46.0 48.5 100 12 1 GSX 41200S-4D ● 12.0 48.0 ― 100 12 2 GSX 41300S-4D ● 13.0 52.0 55.5 110 16 1 GSX 41400S-4D ● 14.0 56.0 59.5 120 16 1 GSX 41500S-4D ● 15.0 60.0 63.5 120 16 1 GSX 41600S-4D ● 16.0 64.0 ― 120 16 2 GSX 41700S-4D ● 17.0 68.0 72.5 130 20 1 GSX 41800S-4D ● 18.0 72.0 76.5 130 20 1 GSX 41900S-4D ● 19.0 76.0 80.5 140 20 1 GSX 42000S-4D ● 20.0 80.0 ― 140 20 2 GSX 42500S-4D ● 25.0 100.0 ― 160 25 2 Grade: ACF20 Endmill Identification (GSXMILL Series Only) GSX 4 0100 S - 4D Series Code Number Dia. Cutting Edge Cutting Edge of Teeth S: Sharp Edge Length I60
