Общий каталог Sumitomo 2019 - 2020 - страница 711

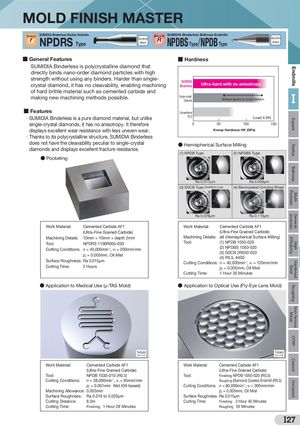

UncoatedCoatedCFRPNon-ferrousMetalRoughingHardenedSteelHighEfficiencyGeneral-purposeMulti-PurposeBallnoseRadiusSquareEndmills MOLD FINISH MASTER Radius SUMIDIA Binderless Radius EndmillsrNPDRS Type Ball-nose SUMIDIA Binderless Ballnose EndmillsHard BrittleMaterialRNPDBS Type/NPDB Type Hard BrittleMaterial Radius ■ General Features ■ Hardness SUMIDIA Binderless is polycrystalline diamond that directly binds nano-order diamond particles with high strength without using any binders. Harder than single-crystal diamond, it has no cleavability, enabling machining SUMIDIABinderless Ultra-hard with no anisotropy of hard brittle material such as cemented carbide and making new machining methods possible. Single-crystalDiamond Hardness depends on crystal orientation I ■ Features Conventional · SUMIDIA Binderless is a pure diamond material, but unlike PCD Load 4.9N single-crystal diamonds, it has no anisotropy. It therefore 0 50 100 150 displays excellent wear resistance with less uneven wear. Knoop Hardness HK (GPa) · Thanks to its polycrystalline structure, SUMIDIA Binderless does not have the cleavability peculiar to single-crystal ● Hemispherical Surface Milling diamonds and displays excellent fracture resistance. (1) NPDB Type (2) NPDBS Type ● Pocketing Ra 0.017μm Ra 0.060μm (3) SDCB Type (SUMIDIA Coat) (4) Electroplated Grinding Wheel Ra 0.078μm Ra 0.110μm Work Material: Cemented Carbide AF1 Work Material:  Cemented Carbide AF1 (Ultra-Fine Grained Carbide) (Ultra-Fine Grained Carbide) Machining Details: 10mm × 10mm × depth 2mm Machining Details: ø6 (Hemispherical Surface Milling) Tool: NPDRS 1100R005-030 Tool: (1) NPDB 1050-020 Cutting Conditions: n = 40,000min-1, vf = 200mm/minpf = 0.005mm, Oil Mist (2) NPDBS 1050-020(3) SDCB 2R050-020(4) R0.5, #400 Surface Roughness: Ra 0.015μm Cutting Conditions: n = 40,000min-1, vf = 120mm/min Cutting Time: 2 Hours pf = 0.005mm, Oil Mist Cutting Time: 1 Hour 30 Minutes ● Application to Medical Use (μ-TAS Mold) ● Application to Optical Use (Fly-Eye Lens Mold) 1mm 1mm Work Material:  Cemented Carbide AF1 Work Material: Cemented Carbide AF1 (Ultra-Fine Grained Carbide) (Ultra-Fine Grained Carbide) Tool: NPDB 1030-010 (R0.3) Tool: F inishing NPDB 1050-020 (R0.5) Cutting Conditions: n = 38,000min-1, vf = 95mm/min Roughing Diamond Coated Endmill (R0.5) pf = 0.001mm Wet (Oil-based) Cutting Conditions: n = 60,000min-1, vf = 300mm/min Machining Allowance: 0.003mm pf = 0.005mm, Oil Mist Surface Roughness: Ra 0.016 to 0.020μm Surface Roughness: Ra 0.015μm Cutting Distance: 8.3m Cutting Time:  Finishing 2 Hour 40 Minutes Cutting Time: Finishing 1 Hour 28 Minutes Roughing 55 Minutes I27
