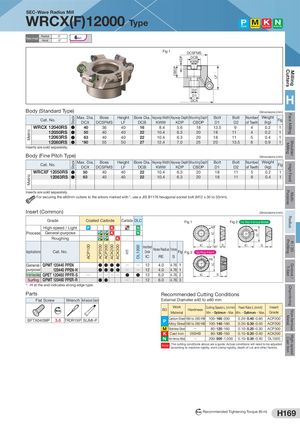

Общий каталог Sumitomo 2019 - 2020 - страница 613

MetricMetric StockStock ACP100 ACP200 ACP300 ACK200 ACK300 H1 DL1000 CBDP KDP ICIC LF IC High-speedCast IronNon-ferrousMetalChamferingGroove /T-SlotR / 3DProfilingRadiusMulti-PurposeHigh FeedShoulderMillingFace MillingMillingCutters SEC-Wave Radius Mill WRCX(F)12000 Type Steel Stainless Steel Cast Iron Aluminum Alloy Radial 0° Rake Angle Axial -3° Fig 1 DCSFMS DCB KWW D2 D1DCX H Body (Standard Type)  Dimensions (mm) Cat. No. Max. Dia. Boss Height Bore Dia. Keyway Width Keyway Depth Mounting Depth BoltDCXDCSFMSLFDCBKWWKDPCBDPD1BoltD2Numberof Teeth Weight(kg) Fig WRCX 12040RS ● 40 36 40 16 8.4 5.6 18 13.5 9 4 0.2 1 WRCX 12050RS ● 50 40 40 22 10.4 6.3 20 18 11 4 0.2 1 WRCX 12063RS ● 63 40 40 22 10.4 6.3 20 18 11 5 0.4 1 WRCX 12080RS ● *80 55 50 27 12.4 7.0 25 20 13.5 6 0.9 1 Inserts are sold separately. Body (Fine Pitch Type)  Dimensions (mm) Cat. No. Max. Dia. Boss Height Bore Dia. Keyway Width Keyway Depth Mounting Depth BoltDCXDCSFMSLFDCBKWWKDPCBDPD1BoltD2Numberof Teeth Weight(kg) Fig WRCXF 12050RS ● 50 40 40 22 10.4 6.3 20 18 11 5 0.2 1 WRCXF 12063RS ● 63 40 40 22 10.4 6.3 20 18 11 6 0.4 1 Inserts are sold separately. For securing the ø80mm cutters to the arbors marked with *, use a JIS B1176 hexagonal socket bolt (M12 x 30 to 35mm). Insert (Common)  Dimensions (mm) Grade Coated Carbide Carbide DLC Fig 1 Fig 2 For Non-Ferrous Metals High-speed / Light P K N RE RE Process General-purpose K N Roughing K Applications Cat. No. Inscribed Circle Nose Radius Thickness Fig Fig 3 IC 90° SSurng Insert IC S IC RE S RE General- QPMT 120440 PPEN ●●●● Q Q 12 4.0 4.76 1 purpose* QPMT 120440 PPEN-H ●●●● Q Q 12 4.0 4.76 1 For Non-Ferrous Metals QPET 120460 PPFR-S Q Q Q Q Q ● ● 12 6.0 4.76 2 IC S Surfing QPMT 120460 PPER-R ●● Q Q 12 6.0 4.76 3 *: -H at the end indicates strong edge type. Parts Recommended Cutting Conditions Flat Screw Wrench Anti-seizure Cream External Diameter ø40 to ø80 mm Nm WorkISO Hardness Cutting Speed vc (m/min) Feed Rate fz (mm/t) InsertMaterialMin. - Optimum - Max. Min. - Optimum - Max.Grade BFTX0409IP 3.0 TRDR15IP SUMI-P P Carbon Steel 180 to 280 HBAlloy Steel 180 to 280 HB100- 160 -200100- 140 -1800.20- 0.40 -0.60 ACP2000.20- 0.30 -0.40ACP200 M Stainless Steel Q 80- 120 -160 0.10- 0.20 -0.30 ACP300 K Cast Iron 250HB 80- 120 -160 0.10- 0.20 -0.40 ACK200 N Non-ferrous Metal Q 200- 500 -1,000 0.10- 0.30 -0.40 DL1000 Note The cutting conditions above are a guide. Actual conditions will need to be adjusted according to machine rigidity, work clamp rigidity, depth of cut and other factors. N m Recommended Tightening Torque (N·m) H169
