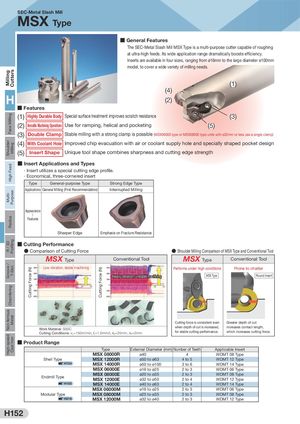

Milling CuttersFace MillingShoulde rMillingHigh FeedMulti-PurposeRadiusR / 3DProfilingGroove /T-SlotChamferingNon-ferrousMetalHigh-speedCast Iron Cutting Force (N) Cutting Force (N) SEC-Metal Slash Mill MSX Type ■ General Features The SEC-Metal Slash Mill MSX Type is a multi-purpose cutter capable of roughing at ultra-high feeds. Its wide application range dramatically boosts efficiency. Inserts are available in four sizes, ranging from ø16mm to the large diameter ø100mm model, to cover a wide variety of milling needs. (1) (4) H (2) ■ Features (1) Highly Durable Body Special surface treatment improves scratch resistance (3) (2) Versatile Machining Operations Use for ramping, helical and pocketing (5) (3) Double Clamp Stable milling with a strong clamp is possible (MSX06000 type or MSX08000 type units with ø22mm or less use a single clamp) (4) With Coolant Hole Improved chip evacuation with air or coolant supply hole and specially shaped pocket design (5) Insert Shape Unique tool shape combines sharpness and cutting edge strength ■ Insert Applications and Types · Insert utilizes a special cutting edge profile. · Economical, three-cornered insert Type General-purpose Type Strong Edge Type Applications General Milling (First Recommendation) Interrupted Milling Appearance / Features Sharper Edge Emphasis on Fracture Resistance ■ Cutting Performance ● Comparison of Cutting Force ● Shoulder Milling Comparison of MSX Type and Conventional Tool MSX Type Conventional Tool MSX Type Conventional Tool Low vibration, stable machining Performs under high conditions Prone to chatter Heavy vibration, unstable machining MSX Type Round Insert Cutting force is consistent even Greater depth of cut Work Material: S 50C when depth of cut is increased, increases contact length, Cutting Conditions: v c=150m/min, fz=1.0mm/t, ap=25mm, ae=2mm for stable cutting performance. which increases cutting force. ■ Product Range Type External Diameter (mm) Number of Teeth Applicable Insert MSX 08000R ø40 4 WDMT 08 Type Shell Type MSX 12000R ø50 to ø63 4 to 5 WDMT 12 Type H154 MSX 14000R ø50 to ø100 3 to 6 WDMT 14 Type MSX 06000E ø16 to ø25 2 to 3 WDMT 06 Type Endmill Type MSX 08000E ø20 to ø35 2 to 3 WDMT 08 TypeMSX 12000Eø32 to ø502 to 4WDMT 12 Type H155 MSX 14000E ø40 to ø63 2 to 4 WDMT 14 Type MSX 06000M ø16 to ø25 2 to 3 WDMT 06 Type Modular Type MSX 08000M ø25 to ø35 2 to 3 WDMT 08 Type H216 MSX 12000M ø32 to ø40 2 to 3 WDMT 12 Type H152
