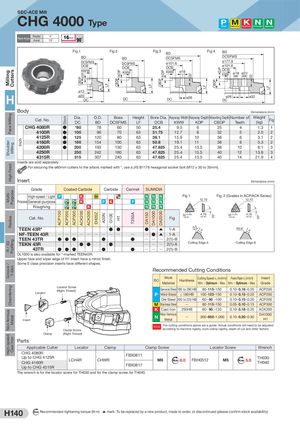

Общий каталог Sumitomo 2019 - 2020 - страница 584

Milling CuttersFace MillingShoulde rMillingHigh FeedMulti-PurposeRadiusR / 3DProfilingGroove /T-SlotChamferingNon-ferrousMetalHigh-speedCast Iron Inch ACP100 StockACP200 ACP300 CBDPKDPACK200 ACK300 EH20Z A30N LF G10E CBDPKDPH1 T250A DA150 LF DA1000 CBDPKDPDA2200 32 LF CBDP20° KDP 32 20° LF SEC-ACE Mill CHG 4000 Type Steel Stainless Steel Cast Iron Non-Ferrous Metal Aluminum Alloy Radial 4° Rake Angle Axial 15° Fig 1 Fig 2 Fig 3 BD Fig 4 BD BD BD DCSFMS DCSFMS DCSFMS DCSFMS ø101.6DCBDCBDCBKWWKWWKWWø18 ø177.8ø101.6DCBKWWø18 ø22 ø13 H ø20 DC DC DC ø26 ø26 ø32DC Body  Dimensions (mm) Cat. No. Dia.DC O.D.BD BossDCSFMS HeightLF Bore Dia. Keyway Width Keyway Depth Mounting Depth Number ofDCBKWWKDPCBDPTeeth Weight(kg) Fig CHG 4080R ● *80 78 60 50 25.4 9.5 6 25 4 1.3 1 CHG 4100R ● 100 96 70 63 31.75 12.7 8 32 5 2.0 2 CHG 4125R ● 125 120 80 63 38.1 15.9 10 38 6 3.1 2 CHG 4160R ● 160 154 100 63 50.8 19.1 11 38 8 5.3 2 CHG 4200R ● 200 193 130 63 47.625 25.4 13.5 38 10 8.1 3 CHG 4250R 250 242 180 63 47.625 25.4 13.5 40 12 13.8 3 CHG 4315R 315 307 240 63 47.625 25.4 13.5 40 14 21.9 4 Inserts are sold separately. For securing the ø80mm cutters to the arbors marked with *, use a JIS B1176 hexagonal socket bolt (M12 x 30 to 35mm). Insert  Dimensions (mm) Grade Coated Carbide Carbide Cermet SUMIDIA High-speed / Light P K M N N N Fig 1 Fig. 2 (Grades in ACP/ACK Series) Process General-purpose K P K P N N N 12.70 12.70 Roughing K N N N M±0.025 4.76 M±0.025 4.76 Cat. No. Fig TEEN 43R* ● ● ● Q ▲ 1-A 0.5 1.4 R0.8 1.4 NF-TEEN 43R Q Q Q Q Q Q Q Q Q Q Q ● ▲ 1-A TEEN 43TR ● ● ● ● ● Q Q Q 2(1)-B TEKN 43R ● ● ● Q Q Q 2(1)-A Cutting Edge A Cutting Edge B TEKN 43TR ● ● ● ● ● Q Q Q 2(1)-B DL1000 is also available for *-marked TEEN43R. Upper face and wiper edge of H1 insert have a mirror finish. Some E class precision inserts have different shapes. Recommended Cutting Conditions WorkISO Hardness Cutting Speed vc (m/min) Feed Rate fz (mm/t) Insert Material Min. - Optimum - Max. Min. - Optimum - Max. Grade Locator Screw (Right Thread) General Steel 180 to 280 HB 80- 115 -150 0.10- 0.18 -0.25 ACP200 Locator P Mild Steel ≤ 180HB 100- 125 -150 0.10- 0.15 -0.20 ACP200 Die Steel 200 to 220 HB 60- 80 -100 0.10- 0.15 -0.20 ACP200 M Stainless Steel Q 80- 115 -150 0.05- 0.10 -0.15 ACP300 K Cast Iron 250HB 60- 90 -120 0.10- 0.18 -0.25 ACK200 Insert N Non-ferrousMetal Q 300- 650 -1,000 0.10- 0.20 -0.30 DA1000 H1 Note The cutting conditions above are a guide. Actual conditions will need to be adjusted Clamp Screw according to machine rigidity, work clamp rigidity, depth of cut and other factors. Clamp (Right Thread) Parts Applicable Cutter Locator Clamp Clamp Screw Locator Screw Wrench CHG 4080RUp to CHG 4125RCHG 4160R LCH4RUp to CHG 4315R CHWR FBX0811FBX0817 M8 Nm 8.0 FBH0512 M5 Nm 5.0 TH030TH040 The wrench is for the locator screw for TH030 and for the clamp screw for TH040. H140 N m Recommended tightening torque (N·m) ▲ mark: To be replaced by a new product, made to order, or discontinued (please confirm stock availability)
