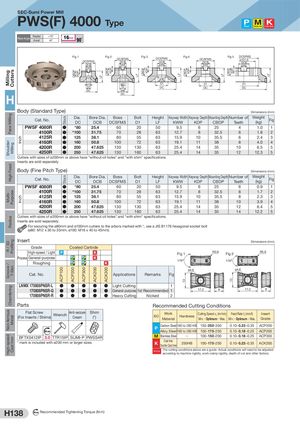

Milling CuttersFace MillingShoulde rMillingHigh FeedMulti-PurposeRadiusR / 3DProfilingGroove /T-SlotChamferingNon-ferrousMetalHigh-speedCast Iron InchInch ACP100 StockStock CBDPACP200 KDP ACP300 ACK200 LF CBDPACK300 KDP LF CBDP KDP LF CBDP13 KDP LF CBDP KDP13 LF SEC-Sumi Power Mill PWS(F) 4000 Type Steel Stainless Steel Cast Iron Radial –15° Rake Angle Axial –6° Fig 1 Fig 2 DCSFMS Fig 3 DCSFMS Fig 4 DCSFMSDCSFMSDCBDCBDCBDCBKWWKWWKWWFig 5DCSFMSø101.6DCBKWW KWW ø30 ø13 ø17 D1 D1 D1 D1 D1 DC DC DC DC ø46 DC H Body (Standard Type)  Dimensions (mm) Cat. No. Dia. Bore Dia. Boss BoltDCDCBDCSFMSD1HeightLF Keyway Width Keyway Depth Mounting Depth Number ofKWWKDPCBDP Teeth Weight(kg) Fig PWSF 4080R ● *80 25.4 60 20 50 9.5 6 25 4 1.0 1 PWSF 4100R ● *100 31.75 70 28 63 12.7 8 32.5 6 1.8 2 PWSF 4125R ● 125 38.1 80 55 63 15.9 10 35.5 6 2.4 3 PWSF 4160R ● 160 50.8 100 72 63 19.1 11 38 8 4.0 4 PWSF 4200R ● 200 47.625 130 130 63 25.4 14 35 10 6.5 5 PWSF 4250R ● 250 47.625 130 160 63 25.4 14 35 12 12.3 5 Cutters with sizes of ø200mm or above have "without oil holes" and "with shim" specifications. Inserts are sold separately. Body (Fine Pitch Type)  Dimensions (mm) Cat. No. Dia. Bore Dia. Boss BoltDCDCBDCSFMSD1HeightLF Keyway Width Keyway Depth Mounting Depth Number ofKWWKDPCBDP Teeth Weight(kg) Fig PWSF 4080R ● *80 25.4 60 20 50 9.5 6 25 6 0.9 1 PWSF 4100R ● *100 31.75 70 28 63 12.7 8 32.5 8 1.7 2 PWSF 4125R ● 125 38.1 80 55 63 15.9 10 35.5 8 2.3 3 PWSF 4160R ● 160 50.8 100 72 63 19.1 11 38 10 3.9 4 PWSF 4200R ● 200 47.625 130 130 63 25.4 14 35 12 6.4 5 PWSF 4250R ● 250 47.625 130 160 63 25.4 14 35 14 12.2 5 Cutters with sizes of ø200mm or above have "without oil holes" and "with shim" specifications. Inserts are sold separately. For securing the ø80mm and ø100mm cutters to the arbors marked with *, use a JIS B1176 hexagonal socket bolt (ø80: M12 x 30 to 35mm, ø100: M16 x 40 to 45mm). Insert  Dimensions (mm) Grade Coated Carbide High-speed / Light P K Fig 1 R0.8 Fig 2 R0.8 Process General-purpose K 176 176 Roughing K ø4.6 ø4.6 Cat. No. Applications Remarks Fig LNMX 170808PNSR-L ● ● ● ● ● Light Cutting 1 LNMX 170808PNSR-G ● ● ● ● ● General-purpose 1st Recommended 1 17.2 8 17.2 8 LNMX 170808PNSR-R ● ● ● ● ● Heavy Cutting Nicked 2 Parts Recommended Cutting Conditions Flat Screw(For Inserts / Shims)WrenchAnti-seizureCream Shim(*) WorkISO Hardness Cutting Speed vc (m/min) Feed Rate fz (mm/t) InsertMaterialMin. - Optimum - Max.Min. - Optimum - Max.Grade P Carbon Steel 180 to 280 HB 150- 250 -350 0.10- 0.23 -0.35 ACP200 Nm Alloy Steel 180 to 280 HB 100- 175 -250 0.10- 0.18 -0.25 ACP200 BFTX0412IP 3.0 TTR15IP SUMI-P PWSS4R M Stainless Steel Q 100- 150 -200 0.10- 0.18 -0.25 ACP300 * mark is included with ø200 mm or larger sizes. K Cast IronDuctile Cast Iron250HB 100- 175 -250 0.10- 0.23 -0.35 ACK200 Note The cutting conditions above are a guide. Actual conditions will need to be adjusted according to machine rigidity, work clamp rigidity, depth of cut and other factors. H138 N m Recommended Tightening Torque (N·m)
