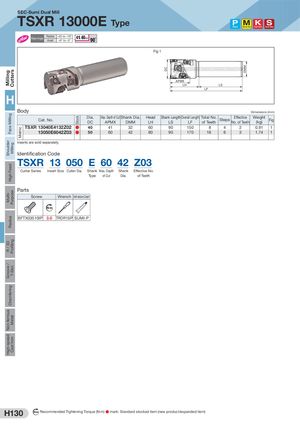

Общий каталог Sumitomo 2019 - 2020 - страница 574

Milling CuttersFace MillingShoulde rMillingHigh FeedMulti-PurposeRadiusR / 3DProfilingGroove /T-SlotChamferingNon-ferrousMetalHigh-speedCast Iron Metric Stock DC DMM SEC-Sumi Dual Mill TSXR 13000E Type Steel Stainless Steel Cast Iron Exotic Alloy Radial –23 to –18° Rake Angle to Axial –6° to –3° Fig 1 APMX LH LS LF H Body  Dimensions (mm) Cat. No. Dia.DC Max. Depth of Cut Shank Dia.APMXDMMHeadLHShank Length Overall Length Total No.LSLFof TeethSteps Effective No. of Teeth Weight(kg) Fig TSXR 13040E4132Z02 ● 40 41 32 60 90 150 8 4 2 0.91 1 TSXR 13050E6042Z03 ● 50 60 42 80 90 170 18 6 3 1.74 1 Inserts are sold separately. Identification Code TSXR 13 050 E 60 42 Z03 Cutter Series Insert Size Cutter Dia. Shank Max. Depth Shank Effective No. Type of Cut Dia. of Teeth Parts Screw Wrench Anti-seizure Cream Nm BFTX03510IP 3.0 TRDR15IP SUMI-P H130 N m Recommended Tightening Torque (N·m) ● mark: Standard stocked item (new product/expanded item)
