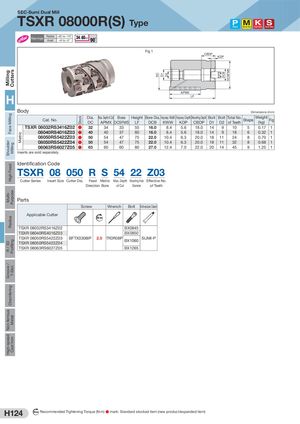

Общий каталог Sumitomo 2019 - 2020 - страница 568

Milling CuttersFace MillingShoulde rMillingHigh FeedMulti-PurposeRadiusR / 3DProfilingGroove /T-SlotChamferingNon-ferrousMetalHigh-speedCast Iron Metric Stock DC D1 D2 KWW DCB DCSFMS SEC-Sumi Dual Mill TSXR 08000R(S) Type Steel Stainless Steel Cast Iron Exotic Alloy Radial –20 to –15° Rake Angle to Axial –6 to –3° Fig 1 CBDP KDP APMX H LF Body  Dimensions (mm) Cat. No. Dia.DCMax. Depth of Cut BossAPMXDCSFMSHeightLF Bore Dia. Keyway Width Keyway Depth Mounting Depth BoltDCBKWWKDPCBDPD1BoltD2Total No.of Teeth Steps Weight(kg) Fig TSXR 08032RS3416Z02 ● 32 34 33 55 16.0 8.4 5.6 18.0 14 9 10 5 0.17 1 TSXR 08040RS4016Z03 ● 40 40 37 60 16.0 8.4 5.6 18.0 14 9 18 6 0.32 1 TSXR 08050RS5422Z03 ● 50 54 47 75 22.0 10.4 6.3 20.0 18 11 24 8 0.70 1 TSXR 08050RS5422Z04 ● 50 54 47 75 22.0 10.4 6.3 20.0 18 11 32 8 0.68 1 TSXR 08063RS6027Z05 ● 63 60 60 80 27.0 12.4 7.0 22.0 20 14 45 9 1.25 1 Inserts are sold separately. Identification Code TSXR 08 050 R S 54 22 Z03 Cutter Series Insert Size Cutter Dia. Feed Metric Max. Depth Mounting Hole Effective No. Direction Bore of Cut Diameter of Teeth Parts Screw Wrench Bolt Anti-seizure Cream Applicable Cutter Nm TSXR 08032RS3416Z02 BX0845 TSXR 08040RS4016Z03 BX0850 TSXR 08050RS5422Z03TSXR 08050RS5422Z04BFTX0308IP 2.0 TRDR08IP BX1060 SUMI-P TSXR 08063RS6027Z05 BX1265 H124 N m Recommended Tightening Torque (N·m) ● mark: Standard stocked item (new product/expanded item)
