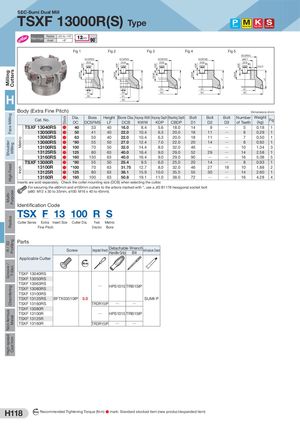

Общий каталог Sumitomo 2019 - 2020 - страница 562

Milling CuttersFace MillingShoulde rMillingHigh FeedMulti-PurposeRadiusR / 3DProfilingGroove /T-SlotChamferingNon-ferrousMetalHigh-speedCast Iron MetricInch Stock CBDP KDP LF CBDP KDP LF CBDP KDP LF CBDP KDP LF CBDP KDP LF SEC-Sumi Dual Mill TSXF 13000R(S) Type Steel Stainless Steel Cast Iron Exotic Alloy Radial –23 to –15° Rake Angle Axial –6° Fig 1 Fig 2 Fig 3 Fig 4 Fig 5 DCSFMS DCSFMS DCSFMS DCSFMS DCSFMS ø66.7 DCB DCB DCB DCB DCB KWW KWW KWW KWW KWW 4-ø14 D2 D3 D1 D1 D1 D1 D2 DC DC DC H DC D1DC Body (Extra Fine Pitch)  Dimensions (mm) Cat. No. Dia. Boss Height Bore Dia. Keyway Width Keyway Depth Mounting Depth BoltDCDCSFMSLFDCBKWWKDPCBDPD1BoltD2BoltD3 Numberof Teeth Weight(kg) Fig TSXF 13040RS ● 40 33 40 16.0 8.4 5.6 18.0 14 9 Q 5 0.18 1 TSXF 13050RS ● 50 41 40 22.0 10.4 6.3 20.0 18 11 Q 6 0.29 1 TSXF 13063RS ● 63 50 40 22.0 10.4 6.3 20.0 18 11 Q 7 0.50 1 TSXF 13080RS ● *80 55 50 27.0 12.4 7.0 22.0 20 14 Q 8 0.92 1 TSXF 13100RS ● 100 70 50 32.0 14.4 8.0 32.0 46 Q Q 10 1.34 3 TSXF 13125RS ● 125 80 63 40.0 16.4 9.0 29.0 52 29 Q 14 2.58 1 TSXF 13160RS ● 160 130 63 40.0 16.4 9.0 29.0 90 Q Q 16 5.08 5 TSXF 13080R ● *80 55 50 25.4 9.5 6.0 25.0 20 14 Q 8 0.93 1 TSXF 13100R ● *100 70 63 31.75 12.7 8.0 32.0 46 27 18 10 1.88 2 TSXF 13125R ● 125 80 63 38.1 15.9 10.0 35.5 55 30 Q 14 2.60 1 TSXF 13160R ● 160 100 63 50.8 19.1 11.0 38.0 72 Q Q 16 4.28 4 Inserts are sold separately. Check the collet mounting size (DCB) when selecting the cutter. For securing the ø80mm and ø100mm cutters to the arbors marked with *, use a JIS B1176 hexagonal socket bolt (ø80: M12 x 30 to 35mm, ø100: M16 x 40 to 45mm). Identification Code TSX F 13 100 R S Cutter Series Extra Insert Size Cutter Dia. Feed Metric Fine Pitch Direction Bore Parts Screw Integrated Wrench Detachable Handle Grip Wrench Bit Anti-seizure Cream Applicable Cutter Nm TSXF 13040RS TSXF 13050RS TSXF 13063RSTSXF 13080RS Q HPS1015 TRB15IP TSXF 13100RS TSXF 13125RS BFTX03510IP 3.0 SUMI-P TSXF 13160RS TRDR15IP Q Q TSXF 13080R TSXF 13100R Q HPS1015 TRB15IP TSXF 13125R TSXF 13160R TRDR15IP Q Q H118 N m Recommended Tightening Torque (N·m) ● mark: Standard stocked item (new product/expanded item)
