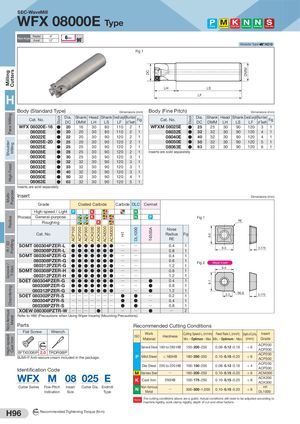

Общий каталог Sumitomo 2019 - 2020 - страница 540

Milling CuttersFace MillingShoulde rMillingHigh FeedMulti-PurposeRadiusR / 3DProfilingGroove /T-SlotChamferingNon-ferrousMetalHigh-speedCast Iron Stock ACP100 ACP200 ACP300 ACK200 ACK300 ACM200 ACM300 H1 DL1000 DC T4500A Stock 8.08.1 DMM SEC-WaveMill WFX 08000E Type Steel Stainless Steel Cast Iron Non-Ferrous Metal Aluminum Alloy Exotic Alloy Radial -6° Rake Angle Axial 12° Modular Type H212 Fig 1 LH LS H LF Body (Standard Type)  Dimensions (mm) Body (Fine Pitch)  Dimensions (mm) Cat. No. Dia.DC ShankDMM HeadLH Shank LS Overall Length Number LF of Teeth Fig Cat. No. Dia.DC ShankDMM HeadLH Shank LS Overall Length Number LF of Teeth Fig WFX 08020E-16 ● 20 16 30 80 110 2 1 WFXM 08025E ● 25 25 30 90 120 3 1 WFX 08020E ● 20 20 30 80 110 2 1 WFXM 08032E ● 32 32 30 90 120 4 1 WFX 08022E ● 22 20 30 90 120 2 1 WFXM 08040E ● 40 32 30 90 120 4 1 WFX 08025E-20 ● 25 20 30 90 120 2 1 WFXM 08050E ● 50 32 30 90 120 5 1 WFX 08025E ● 25 25 30 90 120 2 1 WFXM 08063E ● 63 32 30 90 120 6 1 WFX 08028E ● 28 25 30 90 120 2 1 Inserts are sold separately. WFX 08030E ● 30 25 30 90 120 3 1 WFX 08032E ● 32 32 30 90 120 3 1 WFX 08033E ● 33 32 30 90 120 3 1 WFX 08040E ● 40 32 30 90 120 3 1 WFX 08050E ● 50 32 30 90 120 4 1 WFX 08063E ● 63 32 30 90 120 5 1 Inserts are sold separately. Insert  Dimensions (mm) Grade Coated Carbide Carbide DLC Cermet High-speed / Light P K N Process General-purpose K N P Fig 1 Roughing K RE Nose Cat. No. Radius Fig RE SOMT 080304PZER-L ● ● ● ● ● ● ● Q Q 0.4 1 8.0 3.175 SOMT 080308PZER-L ● ● ● ● ● ● ● Q Q 0.8 1 SOMT 080304PZER-G ● ● ● ● ● ● ● Q Q 0.4 1 SOMT 080308PZER-G ● ● ● ● ● ● ● Q Q 0.8 1 Fig 2 Wiper Insert SOMT 080312PZER-G ● ● ● ● ● ● ● Q Q 1.2 1 8.0 SOMT 080308PZER-H ● ● ● ● ● ● ● Q Q 0.8 1 SOMT 080312PZER-H ● ● ● ● ● ● ● Q Q 1.2 1 SOET 080304PZER-G ● ● ● ● ● ● ● Q Q ● 0.4 1 SOET 080308PZER-G ● ● ● ● ● ● ● Q Q ● 0.8 1 SOET 080312PZER-G ● ● ● ● ● ● ● Q Q ● 1.2 1SOET 080302PZFR-SQQQQQQQ●●Q0.21 3.3 R0.8 3.175 SOET 080304PZFR-S Q Q Q Q Q Q Q ● ● Q 0.4 1 SOET 080308PZFR-S Q Q Q Q Q Q Q ● ● Q 0.8 1 XOEW 080308PZTR-W Q Q Q ● Q Q ● Q 2 Refer to H90 (Precautions when Using Wiper Inserts) (Mounting Precautions). Parts Recommended Cutting Conditions Flat Screw Wrench WorkISO Hardness Cutting Speed vc (m/min) Feed Rate fz (mm/t) Depth of Cut ap Insert Material Min. - Optimum - Max. Min. - Optimum - Max. (mm) Grade Nm General Steel 180 to 280 HB 150- 200 -250 0.08- 0.12 -0.18 <6 ACP200ACP300 BFTX0306IP 2.0 TRDR08IPSUMI-P Anti-seizure cream included in the package. P Mild Steel ≤ 180HB 180- 250 -350 ACP2000.10- 0.15 -0.20<6ACP300 Identification Code Die Steel 200 to 220 HB 100- 150 -200 0.08- 0.12 -0.18 <4 ACP200ACP300 M Stainless Steel Q 160- 200 -250 0.10- 0.15 -0.20 <6 ACM300 WFX M 08 025 E K Cast Iron 250HB 100- 175 -250 0.10- 0.15 -0.20 <6 ACK200ACK300 Cutter Series Fine-Pitch Insert Cutter Dia. EndmillIndicationSizeTypeN Non-ferrous Metal Q 300- 500 -1,000 0.10- 0.15 -0.20 <6 H1DL1000 Note The cutting conditions above are a guide. Actual conditions will need to be adjusted according to machine rigidity, work clamp rigidity, depth of cut and other factors. H96 N m Recommended Tightening Torque (N·m)
