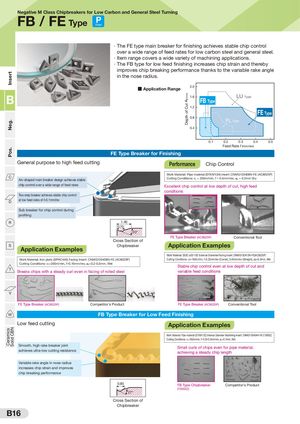

FB / FENegative M Class Chipbreakers for Low Carbon and General Steel Turning

Type P

Steel

  • The FE type main breaker for finishing achieves stable chip control over a wide range of feed rates for low carbon steel and general steel.
  • Item range covers a wide variety of machining applications.
  • The FB type for low feed finishing increases chip strain and thereby improves chip breaking performance thanks to the variable rake angle in the nose radius.

■ Application Range 2.0

BB LU

1.6 FB Type

Type 1.2 FE Type 0.8 FL

Type 0.4

0.10.20.30.40.5
Feed Rate f (mm/rev)
FE Type Breaker for Finishing
General purpose to high feed cuttingPerformanceChip Control
Work Material: Pipe material (STKM13A) Insert: CNMG120408N-FE (AC8025P)
C= 0.4mm/rev,
Arc-shaped main breaker design achieves stableCutting Conditions: vc = 200m/min, fap = 0.2mm Dry

chip control over a wide range of feed rates Excellent chip control at low depth of cut, high feed conditions Two-step breaker achieves stable chip control D at low feed rates of f=0.1mm/rev

Sub breaker for chip control during profiling R 1.40 0.80 0.70 27° 20° FE Type Breaker (AC8025P) Conventional Tool

FB FECross Section of

SChipbreakerApplication Examples
Application Examples
Work Material: S53C ø20-100 External Diameter/Facing Insert: DNMG150412N-FE(AC8025P)
Work Material: Iron plate (SPHC440) Facing Insert: CNMG120408N-FE (AC8025P)Cutting Conditions: vc=180m/min, f=0.25mm/rev (Corner), 0.45mm/rev (Straight), ap=0.3mm, Wet
Cutting Conditions: v =200m/min, f=0.15mm/rev, a =0.2-0.5mm, Wet

c p Stable chip control even at low depth of cut and

T Breaks chips with a steady curl even in facing of rolled steel variable feed conditions

V 100mm 100mm

FE Type Breaker (AC8025P) Competitor's Product FE Type Breaker (AC8025P) Conventional Tool

W FB Type Breaker for Low Feed Finishing Low feed cutting Application Examples Work Material: Pipe material (STKM13C) Internal Diameter Machining Insert: DNMG150404N-FB (T3000Z) Cutting Conditions: v =352m/min, f=0.03-0.2mm/rev, a =0.7mm, Wet

c p Smooth, high rake breaker joint Small curls of chips even for pipe material, achieves ultra-low cutting resistance achieving a steady chip length

Variable rake angle in nose radius increases chip strain and improves chip breaking performance 1.40

0.80 FB Type Chipbreaker Competitor's Product

0.70 (T3000Z) 27° 20° FBCross Section of FE

Chipbreaker
