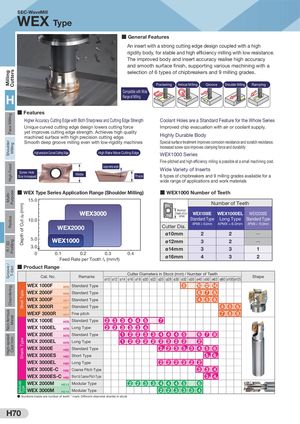

Общий каталог Sumitomo 2019 - 2020 - страница 514

Milling CuttersFace MillingShoulde rMillingHigh FeedMulti-PurposeRadiusR / 3DProfilingGroove /T-SlotChamferingNon-ferrousMetalHigh-speedCast Iron Depth of Cut ap (mm)Shell TypeShank TypeModularType SEC-WaveMill WEX Type ■ General Features An insert with a strong cutting edge design coupled with a high rigidity body, for stable and high efficiency milling with low resistance. The improved body and insert accuracy realise high accuracy and smooth surface finish, supporting various machining with a selection of 6 types of chipbreakers and 9 milling grades. Pocketing Helical Milling Groove Shoulder Milling Ramping Compatible with Wide H Range of Milling ■ Features Higher Accuracy Cutting Edge with Both Sharpness and Cutting Edge Strength Coolant Holes are a Standard Feature for the Whole Series Unique curved cutting edge design lowers cutting force Improved chip evacuation with air or coolant supply. yet improves cutting edge strength. Achieves high qualitymachined surface with high precision cutting edge. Highly Durable Body Smooth deep groove milling even with low-rigidity machines Special surface treatment improves corrosion resistance and scratch resistance. Increased screw size improves clamping force and durability High-precision Curved Cutting Edge High Rake Wave Cutting Edge WEX1000 Series Fine-pitched and high efficiency milling is possible at a small machining cost. Large ramp angle Wide Variety of Inserts Screw HoleSize Increased Wide Thick 6 types of chipbreakers and 9 milling grades available for a wide range of applications and work materials ■ WEX Type Series Application Range (Shoulder Milling) ■ WEX1000 Number of Teeth 15.0 Number of Teeth Maximum WEX3000 Depth of Cut WEX1000E WEX1000EL WEX2000E APMX 10.0 Standard Type Long Type Standard Type WEX2000 Cutter Dia. APMX = 6.0mm APMX = 6.0mm APMX = 10.0mm ø10mm 2 2 Q 5.0 WEX1000 ø12mm 3 2 Q 3.0 ø14mm 3 3 1 0 0.1 0.2 0.3 0.4 Feed Rate per Tooth fz (mm/t) ø16mm 4 3 2 ■ Product Range Cat. No. Remarks Cutter Diameters in Stock (mm) / Number of Teeth Shape ø10 ø12 ø14 ø16 ø18 ø20 ø22 ø25 ø28 ø30 ø32 ø35 ø40 ø50 ø63 ø80 ø100 ø125 WEX 1000F H75 Standard Type 8 10 12 14 WEX 2000F H76 Standard Type 6 7 8 WEX 3000F H77 Standard Type 4 5 6 WEX 3000R H77 Standard Type 4 5 6 WEXF 3000R H77 Fine pitch 7 8 9 WEX 1000E H78 Standard Type 2 3 3 4 4 5 7 WEX 1000EL H78 Long Type 2 2 3 3 3 4 WEX 2000E H79 Standard Type 1 2 2 3 3 4 4 4 5 6 7 8 WEX 2000EL H79 Long Type 1 2 2 2 2 2 2 2 2 2 WEX 3000E H80 Standard Type 2* 2 3 3* 3 4 5 6 WEX 3000ES H80 Short Type 5* 6* WEX 3000EL H80 Long Type 2 2 2 2 2 2 WEX 3000E-C H80 Coarse Pitch Type 3 3 4 WEX 3000ES-C H80 Short & Coarse Pitch Type 3* 4* WEX 2000M H213 Modular Type 2 2 3 3 4 4 4 5 6 WEX 3000M H214 Modular Type 2 2 3 3 3 4 ● Numbers inside are number of teeth * mark: Different-diameter shanks in stock H70
