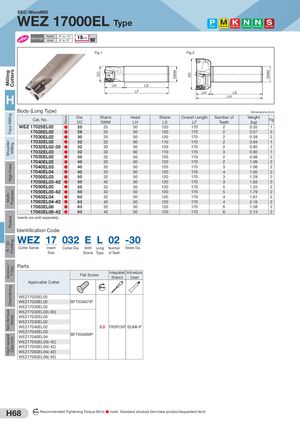

Общий каталог Sumitomo 2019 - 2020 - страница 512

Milling CuttersFace MillingShoulde rMillingHigh FeedMulti-PurposeRadiusR / 3DProfilingGroove /T-SlotChamferingNon-ferrousMetalHigh-speedCast Iron Stock DC DMM DC DMM SEC-WaveMill WEZ 17000EL Type Steel Stainless Steel Cast Iron Non-Ferrous Metal Aluminum Alloy Exotic Alloy Radial -6° to -12° Rake Angle Axial 6° to 15° Fig 1 Fig 2 LH LS LF LH LS H LH Body (Long Type)  Dimensions (mm) Cat. No. Dia. ShankDCDMM HeadLH Shank Overall Length Number ofLSLF Teeth Weight(kg) Fig WEZ 17025EL02 ● 25 25 50 120 170 2 0.55 1 WEZ 17028EL02 ● 28 25 50 120 170 2 0.57 2 WEZ 17030EL02 ● 30 25 50 120 170 2 0.59 2 WEZ 17032EL02 ● 32 32 60 110 170 2 0.94 1 WEZ 17032EL02-30 ● 32 30 50 120 170 2 0.85 2 WEZ 17032EL03 ● 32 32 60 110 170 3 0.92 1 WEZ 17035EL02 ● 35 32 50 120 170 2 0.98 2 WEZ 17040EL02 ● 40 32 50 120 170 2 1.09 2 WEZ 17040EL03 ● 40 32 50 120 170 3 1.08 2 WEZ 17040EL04 ● 40 32 50 120 170 4 1.05 2 WEZ 17050EL03 ● 50 32 50 120 170 3 1.29 2 WEZ 17050EL03-42 ● 50 42 50 120 170 3 1.83 2 WEZ 17050EL05 ● 50 32 50 120 170 5 1.25 2 WEZ 17050EL05-42 ● 50 42 50 120 170 5 1.79 2 WEZ 17063EL04 ● 63 32 50 120 170 4 1.61 2 WEZ 17063EL04-42 ● 63 42 50 120 170 4 2.16 2 WEZ 17063EL06 ● 63 32 50 120 170 6 1.58 2 WEZ 17063EL06-42 ● 63 42 50 120 170 6 2.13 2 Inserts are sold separately. Identification Code WEZ 17 032 E L 02 -30 Cutter Series Insert Cutter Dia. With Long Number Shank Dia. Size Shank Type of Teeth Parts Flat Screw Integrated Anti-seizureWrenchCream Applicable Cutter Nm WEZ17025EL02 WEZ17028EL02 BFTX0407IP WEZ17030EL02 WEZ17032EL02(-30) WEZ17032EL03 WEZ17035EL02 WEZ17040EL02 3.0 TRDR15IP SUMI-P WEZ17040EL03WEZ17040EL04 BFTX0409IP WEZ17050EL03(-42) WEZ17050EL05(-42) WEZ17063EL04(-42) WEZ17063EL06(-42) H68 N m Recommended Tightening Torque (N·m) ● mark: Standard stocked item (new product/expanded item)
