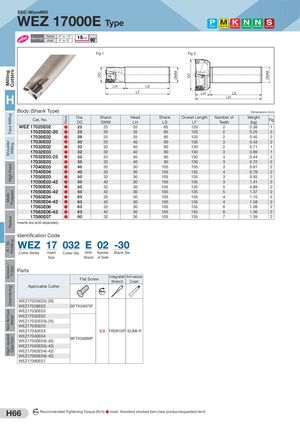

Общий каталог Sumitomo 2019 - 2020 - страница 510

Milling CuttersFace MillingShoulde rMillingHigh FeedMulti-PurposeRadiusR / 3DProfilingGroove /T-SlotChamferingNon-ferrousMetalHigh-speedCast Iron Stock DC DMM DC DMM SEC-WaveMill WEZ 17000E Type Steel Stainless Steel Cast Iron Non-Ferrous Metal Aluminum Alloy Exotic Alloy Radial -6° to -12° Rake Angle Axial 6° to 15° Fig 1 Fig 2 LH LS LF LH LS H LH Body (Shank Type)  Dimensions (mm) Cat. No. Dia. ShankDCDMM HeadLH Shank Overall Length Number ofLSLF Teeth Weight(kg) Fig WEZ 17025E02 ● 25 25 35 85 120 2 0.38 1 WEZ 17025E02-20 ● 25 20 35 85 120 2 0.25 2 WEZ 17028E02 ● 28 25 35 85 120 2 0.40 2 WEZ 17030E03 ● 30 25 40 90 130 3 0.43 2 WEZ 17032E02 ● 32 32 40 90 130 2 0.71 1 WEZ 17032E03 ● 32 32 40 90 130 3 0.69 1 WEZ 17032E03-25 ● 32 25 40 90 130 3 0.44 2 WEZ 17035E03 ● 35 32 40 90 130 3 0.72 2 WEZ 17040E03 ● 40 32 30 105 135 3 0.81 2 WEZ 17040E04 ● 40 32 30 105 135 4 0.79 2 WEZ 17050E03 ● 50 32 30 105 135 3 0.93 2 WEZ 17050E03-42 ● 50 42 30 105 135 3 1.41 2 WEZ 17050E05 ● 50 32 30 105 135 5 0.89 2 WEZ 17050E05-42 ● 50 42 30 105 135 5 1.37 2 WEZ 17063E04 ● 63 32 30 105 135 4 1.10 2 WEZ 17063E04-42 ● 63 42 30 105 135 4 1.58 2 WEZ 17063E06 ● 63 32 30 105 135 6 1.08 2 WEZ 17063E06-42 ● 63 42 30 105 135 6 1.56 2 WEZ 17080E07 ● 80 32 30 105 135 7 1.39 2 Inserts are sold separately. Identification Code WEZ 17 032 E 02 -30 Cutter Series Insert Cutter Dia. With Number Shank Dia. Size Shank of Teeth Parts Flat Screw Integrated Anti-seizureWrenchCream Applicable Cutter Nm WEZ17025E02(-20) WEZ17028E02 BFTX0407IP WEZ17030E03 WEZ17032E02 WEZ17032E03(-25) WEZ17035E03 WEZ17040E03 3.0 TRDR15IP SUMI-P WEZ17040E04WEZ17050E03(-42) BFTX0409IP WEZ17050E05(-42) WEZ17063E04(-42) WEZ17063E06(-42) WEZ17080E07 H66 N m Recommended Tightening Torque (N·m) ● mark: Standard stocked item (new product/expanded item)
