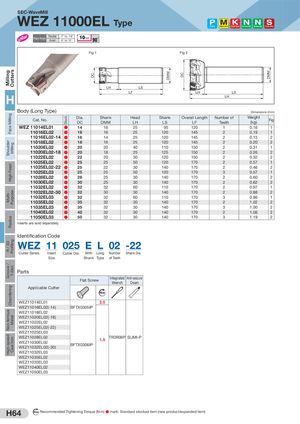

Общий каталог Sumitomo 2019 - 2020 - страница 508

Milling CuttersFace MillingShoulde rMillingHigh FeedMulti-PurposeRadiusR / 3DProfilingGroove /T-SlotChamferingNon-ferrousMetalHigh-speedCast Iron Stock DC DMM DC DMM SEC-WaveMill WEZ 11000EL Type Steel Stainless Steel Cast Iron Non-Ferrous Metal Aluminum Alloy Exotic Alloy Radial -7° to -18° Rake Angle Axial 6° to 15° Fig 1 Fig 2 LH LS LF LH LS H LH Body (Long Type)  Dimensions (mm) Cat. No. Dia. ShankDCDMM HeadLH Shank Overall Length Number ofLSLF Teeth Weight(kg) Fig WEZ 11014EL01 ● 14 16 25 95 120 1 0.16 1 WEZ 11016EL02 ● 16 16 25 120 145 2 0.19 1 WEZ 11016EL02-14 ● 16 14 25 120 145 2 0.15 2 WEZ 11018EL02 ● 18 16 25 120 145 2 0.20 2 WEZ 11020EL02 ● 20 20 40 110 150 2 0.31 1 WEZ 11020EL02-18 ● 20 18 25 125 150 2 0.26 2 WEZ 11022EL02 ● 22 20 30 120 150 2 0.32 2 WEZ 11025EL02 ● 25 25 50 120 170 2 0.57 1 WEZ 11025EL02-22 ● 25 22 30 140 170 2 0.46 2 WEZ 11025EL03 ● 25 25 50 120 170 3 0.57 1 WEZ 11028EL02 ● 28 25 30 140 170 2 0.60 2 WEZ 11030EL02 ● 30 25 30 140 170 2 0.62 2 WEZ 11032EL02 ● 32 32 60 110 170 2 0.97 1 WEZ 11032EL02-30 ● 32 30 30 140 170 2 0.88 2 WEZ 11032EL03 ● 32 32 60 110 170 3 0.96 1 WEZ 11035EL02 ● 35 32 30 140 170 2 1.02 2 WEZ 11035EL03 ● 35 32 30 140 170 3 1.00 2 WEZ 11040EL02 ● 40 32 30 140 170 2 1.08 2 WEZ 11050EL03 ● 50 32 30 140 170 3 1.19 2 Inserts are sold separately. Identification Code WEZ 11 025 E L 02 -22 Cutter Series Insert Cutter Dia. With Long Number Shank Dia. Size Shank Type of Teeth Parts Flat Screw Integrated Anti-seizureWrenchCream Applicable Cutter Nm WEZ11014EL01 2.0 WEZ11016EL02(-14) BFTX0305IP WEZ11018EL02 WEZ11020EL02(-18) WEZ11022EL02 WEZ11025EL02(-22) WEZ11025EL03 WEZ11028EL02WEZ11030EL02WEZ11032EL02(-30) 1.5 TRDR08IP SUMI-PBFTX0306IP WEZ11032EL03 WEZ11035EL02 WEZ11035EL03 WEZ11040EL02 WEZ11050EL03 H64 N m Recommended Tightening Torque (N·m) ● mark: Standard stocked item (new product/expanded item)
