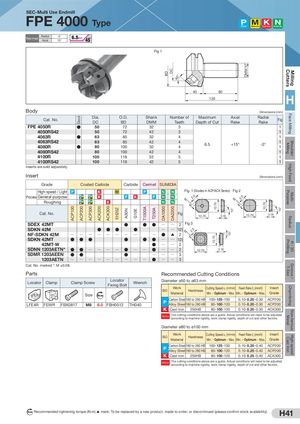

Общий каталог Sumitomo 2019 - 2020 - страница 485

ACP100 StockACP200 ACP300 ACK200 ACK300 EH20Z A30N G10E T1500A T250A DA1000 BD DCDA2200 45° 12.7012.70 15° 15° DMM h7 12.70 15° MM 0.05±0.013± M ± 0.013 High-speedCast IronNon-ferrousMetalChamferingGroove /T-SlotR / 3DProfilingRadiusMulti-PurposeHigh FeedShoulderMillingFace MillingMillingCutters SEC-Multi Use Endmill FPE 4000 Type Steel Stainless Steel Cast Iron Aluminum Alloy Radial -3° Rake Angle Axial 15° Fig 1 40 80 120 H Body  Dimensions (mm) Cat. No. Dia. DC O.D.BD Shank Number of Maximum AxialDMMTeethDepth of CutRake RadialRake Fig FPE 4050R ● 50 72 32 3 1 FPE 4050RS42 50 72 42 3 1 FPE 4063R ● 63 85 32 4 1 FPE 4063RS42 63 85 42FPE 4080R●8010032 44 6.5 +15° -3° 11 FPE 4080RS42 80 100 42 4 1 FPE 4100R 100 118 32 5 1 FPE 4100RS42 100 118 42 5 1 Inserts are sold separately. Insert  Dimensions (mm) Grade Coated Carbide Carbide Cermet SUMIDIA High-speed / Light P K M P N N Fig. 1 (Grades in ACP/ACK Series) Fig 2 Process General-purpose K P K P N N 2.0 2.0 Roughing K N N Cat. No. Fig 12.70 3.18 12.70 3.18 SDEX 42MT ● ● ● Q Q 2 Fig 3 SDKN 42M ● ● ● ● Q Q 1(2) 2.0 NF-SDKN 42M Q Q Q Q Q Q Q Q Q ● ▲ 2 SDKN 42MT ● ● ● ● ● ● Q Q 1(2) SDKN 42MT-W ● Q Q 2 SDNN 1203AETN* ● ● Q Q Q Q ● Q Q ● Q Q 2 12.70 3.18 SDMR 1203AEEN ● ● ● Q Q Q 3 SDMR 1203AETN Q Q Q Q Q Q Q Q Q ● Q Q 3 Cat. No. marked *: M ±0.08. Parts Recommended Cutting Conditions Locator Clamp Clamp Screw LocatorFixing Bolt Wrench Diameter ø50 to ø63 mm Size Nm WorkISOMaterial Hardness Cutting Speed vc (m/min) Feed Rate fz (mm/t)Min. - Optimum - Max. Min. - Optimum - Max.InsertGrade LFE4R FEWR FBX0817 M8 8.0 FBH0512 TH040 P Carbon Steel 180 to 280 HBAlloy Steel 180 to 280 HB 100- 125 -15080- 100 -120 0.10- 0.20 -0.30 ACP2000.10- 0.20 -0.30ACP200 K Cast Iron 250HB 80- 100 -120 0.10- 0.20 -0.30 ACK300 Note The cutting conditions above are a guide. Actual conditions will need to be adjusted according to machine rigidity, work clamp rigidity, depth of cut and other factors. Diameter ø80 to ø100 mm WorkISO Hardness Cutting Speed vc (m/min) Feed Rate fz (mm/t) Insert Material Min. - Optimum - Max. Min. - Optimum - Max. Grade P Carbon Steel 180 to 280 HBAlloy Steel 180 to 280 HB 100- 125 -15080- 100 -120 0.10- 0.25 -0.40 ACP2000.10- 0.25 -0.40ACP200 K Cast Iron 250HB 80- 100 -120 0.10- 0.25 -0.40 ACK300 Note The cutting conditions above are a guide. Actual conditions will need to be adjusted according to machine rigidity, work clamp rigidity, depth of cut and other factors. N m Recommended tightening torque (N·m) ▲ mark: To be replaced by a new product, made to order, or discontinued (please confirm stock availability) H41
