Общий каталог Sumitomo 2019 - 2020 - страница 476

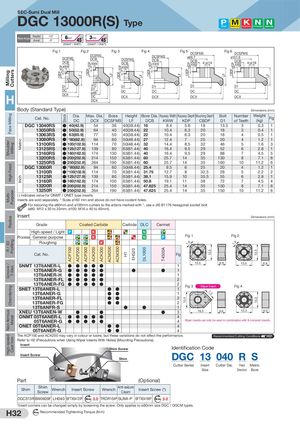

Milling CuttersFace MillingShoulde rMillingHigh FeedMulti-PurposeRadiusR / 3DProfilingGroove /T-SlotChamferingNon-ferrousMetalHigh-speedCast Iron MetricInch CBDP KDP Stock ACP100 LFACP200 CBDP KDPACP300 ACK200 ACK300 LFACM200 CBDP KDPACM300 H1 EH520 LF DL1000 KDPCBDP T4500A LF 13.5 KDPCBDP 13.5 LF CBDP KDP 13.513.5 LF SEC-Sumi Dual Mill DGC 13000R(S) Type Steel Stainless Steel Cast Iron Non-Ferrous Metal Aluminum Alloy Radial -10° Rake Angle Axial -5° (SNMT / SNET) (O(ONNMMTT/OONNEETT) ) Fig 1 Fig 2 Fig 3 Fig 4DCSFMSDCSFMSDCBDCBKWWDCSFMSDCSFMSDCBDCBKWWKWWKWWFig 5DCSFMS Fig 6 DCSFMSø66.7ø101.6DCBKWW4-ø14DCBKWW4-ø18 D1 ø17 D1 D1 D1 D1 H DCDCX D1ø46DC DCDCX DCDCX DCDCX DCDCXDCX Body (Standard Type)  Dimensions (mm) Cat. No. Dia. Max. Dia. Boss Height Bore Dia. Keyway Width Keyway Depth Mounting Depth BoltDCDCXDCSFMSLFDCBKWWKDPCBDPD1Numberof TeethWeight(kg) Fig DGC 13040RS ● 40(42.9) 54 36 40(38.44) 16 8.4 5.6 18 13.5 3 0.3 1 DGC 13050RS ● 50(52.9) 64 40 40(38.44) 22 10.4 6.3 20 18 3 0.4 1 DGC 13063RS ● 63(65.9) 77 50 40(38.44) 22 10.4 6.3 20 18 4 0.5 1 DGC 13080RS ● *80(82.9) 94 60 50(48.44) 27 12.4 7 25 20 4 1.2 1 DGC 13100RS ● 100(102.9) 114 70 50(48.44) 32 14.4 8.5 32 46 5 1.6 3 DGC 13125RS ● 125(127.9) 139 80 63(61.44) 40 16.4 9.5 29 52 6 2.8 1 DGC 13160RS ● 160(162.9) 174 130 63(61.44) 40 16.4 9.5 29 88 7 4.5 5 DGC 13200RS ● 200(202.9) 214 150 63(61.44) 60 25.7 14 35 130 8 7.1 6 DGC 13250RS ● 250(252.9) 264 190 63(61.44) 60 25.7 14 35 160 10 11.2 6 DGC 13080R ● *80(82.9) 94 60 50(48.44) 25.4 9.5 6 25 20 4 1.2 1 DGC 13100R ● *100(102.9) 114 70 63(61.44) 31.75 12.7 8 32.5 28 5 2.2 2 DGC 13125R ● 125(127.9) 139 80 63(61.44) 38.1 15.9 10 35.5 55 6 2.8 1 DGC 13160R ● 160(162.9) 174 100 63(61.44) 50.8 19.1 11 38 72 7 4.5 4 DGC 13200R ● 200(202.9) 214 150 63(61.44) 47.625 25.4 14 35 130 8 7.1 6 DGC 13250R ● 250(252.9) 264 190 63(61.44) 47.625 25.4 14 35 150 10 11.2 6 ( ) indicates value for ONMT / ONET type inserts. Inserts are sold separately. * Sizes ø160 mm and above do not have coolant holes. For securing the ø80mm and ø100mm cutters to the arbors marked with *, use a JIS B1176 hexagonal socket bolt (ø80: M12 x 30 to 35mm, ø100: M16 x 40 to 45mm). Insert  Dimensions (mm) Grade Coated Carbide Carbide DLC Cermet High-speed / Light P K N Process General-purpose K N P Fig 1 Fig 2 Roughing K 1.8 1.6 Cat. No. Fig SNMT 13T6ANER-L ● ● ● ● ● 13.51 6.9 13.5 6.9 SNMT 13T6ANER-G ● ● ● ● ● ● ● 1 SNMT 13T6ANER-H ● ● ● ● ● 1 SNMT 13T6ANER-FL ● ● ● ● ● 2 SNMT 13T6ANER-FG ● ● ● ● ●SNET 13T6ANER-L●●SNET 13T6ANER-G●● 2 Fig 3 Wiper Insert Fig 4117.5 SNET 13T6ANER-FL ● ● 2 SNET 13T6ANER-FG ● ● 2 SNET 13T6ANFR-S ● ● 1 XNEU 13T6ANEN-W ● ● ● 3 18.3 6.6 13.5 6.0 ONMT 05T6ANER-L ● ● ● ● ● 4 ONMT 05T6ANER-G ● ● ● ● ● 4 Wiper inserts can only be used in combination with 8-cornered inserts. ONET 05T6ANER-L ● ● 4 ONET 05T6ANER-G ● ● 4 The ACP100 and ACK200 may vary in colour or lustre, but these variations do not affect the performance. Recommended Cutting Conditions H31 Refer to H2 (Precautions when Using Wiper Inserts With Holes) (Mounting Precautions). Insert Shim Screw Identification Code Insert Screw Shim DGC 13 040 R S Cutter Series Insert Cutter Dia. Feed Metric Size Direction Bore Part (Optional) Shim ShimScrew Wrench Insert Screw Wrench Anti-seizureCream Insert Screw (*) DGCS13R BW0609F LH040 BFTX0412IP Nm 3.0 TRDR15IP SUMI-P BFTX0418IP N m 3.0 *Insert corners can be changed simply by loosening the screw. Only applies to ø80mm size DGC / DGCM types. H32 N m Recommended Tightening Torque (N·m)
