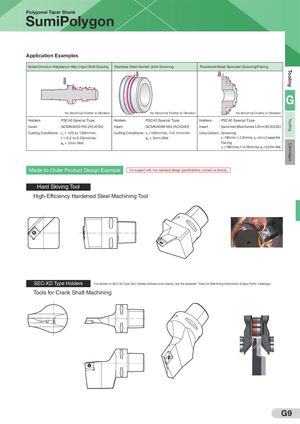

CartridgesToolingTooling Polygonal Taper Shank SumiPolygon Application Examples Nickel-Chromium Molybdenum Alloy Output Shaft Grooving Stainless Steel Socket Joint Grooving Powdered Metal Sprocket Grooving/Facing G No Abnormal Chatter or Vibration No Abnormal Chatter or Vibration No Abnormal Chatter or Vibration Holders : PSC40 Special Type Holders : PSC40 Special Type Holders : PSC40 Special Type Insert : GCMN4020-RG (AC425K) Insert : GCMN4008-MG (AC530U) Insert : Special Insert (Blade Diameter 6.35mm) MG (AC530U) Cutting Conditions : vc = 120 to 140m/min, Cutting Conditions : vc=100m/min, f=0.1mm/rev Cutting Conditions : Grooving f = 0.2 to 0.35mm/rev ap = 3mm Wet vc = 180m/min, f = 0.16mm/rev, ap = 4mm x 2 passes Wet ap = 2mm Wet Facing vc = 190m/min, f = 0.18mm/rev, ap = 0.2mm Wet Made-to-Order Product Design Example For support with non-standard design specifications, contact us directly. Hard Skiving Tool High-Efficiency Hardened Steel Machining Tool SEC-XD Type Holders For details on SEC-XD Type Tool Holders (holders and inserts), see the separate "Tools for Machining Automotive Engine Parts" catalogue. Tools for Crank Shaft Machining G9
