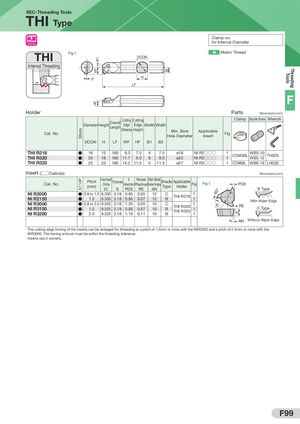

StockST10P B1WFHF B2 60° S Tools Threading SEC-Threading Tools THI Type Clamp-on Internal for Internal Diameter THI Fig 1 DCON Metric Thread Internal Threading 0° H LF F Holder Parts  Dimensions (mm) Cat. No. Diameter Height Overall Length Cutting Edge Distance Cutting Edge Height Width Width Min. Bore ApplicableHole DiameterInsertClampDouble ScrewWrenchFig DCON H LF WF HF B1 B2 THI R216THI R320 ● 16 15 160 9.3 7.5 4 7.5●201816011.79.069.0 ø18ø22 NI R2○○○NI R3○○○ 11 CCM5BSL WB5-10WB5-12TH025 THI R325 ● 25 23 180 14.2 11.5 5 11.5 ø27 NI R3○○○ 1 CCM6BL WB6-16 LH030 Insert ( Carbide) Dimensions (mm) Cat. No. Pitch(mm) Inscribed Circle IC Thickness S X direction PDX Nose Radius RE Main Blade Relief Angle AN Blade Type Applicable Holder Fig Fig 1 PDX B Type NI R2000NI R2150 ● 0.8 to 1.5 6.350 3.18 0.85 0.05 12●1.56.3503.180.850.0712CB THI R216 11 With Wiper Edge NI R3000NI R3150NI R3200 ● 0.8 to 2.5 9.525 3.18 1.35 0.05 10●1.59.5253.180.850.0710●2.09.5253.181.100.1110C 1BBTHI R320THI R32511 IC RE C Type AN Without Wiper Edge · The cutting edge honing of the inserts can be enlarged for threading at a pitch of 1.5mm or more with the NIR2000 and a pitch of 2.5mm or more with the NIR3000. The honing amount must be within the threading tolerance. · Inserts use 3 corners. F99
