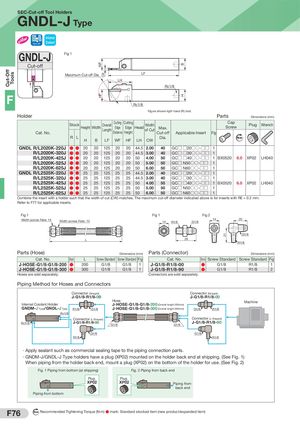

Общий каталог Sumitomo 2019 - 2020 - страница 390

Cut-Of f Tools WFHF CW BH 21 SEC-Cut-off Tool Holders GNDL-J Type Internal Cut-off Coolant GNDL-J Fig 1 Cut-off Maximum Cut-off Dia. LF LH Rc1/8 F Rc1/8 Figure shows right hand (R) tool. Holder Parts Dimensions (mm) Cat. No. Stock Height Width OverallLengthCuttingEdgeDistanceCuttingEdgeHeightHead Width of CutMax.Cut-offApplicable InsertFigCapScrew Plug Wrench R L H B LF WF HF LH CW Dia. Nm GNDL R/L2020K-220J ●● 20 20 125 20 20 44.5 2.00 40 GC□ □20○○-□□ 1 GNDL R/L2020K-320J ●● 20 20 125 20 20 44.5 3.00 40 GC□ □30○○-□□ 1 GNDL R/L2020K-425J ●● 20 20 125 20 20 50 4.00 50 GC□ □40○○-□□ 1 BX0520 6.0 XP02 LH040 GNDL R/L2020K-525J ●● 20 20 125 20 20 50 5.00 50 GC□ N50○○-□□ 1 GNDL R/L2020K-625J ●● 20 20 125 20 20 50 6.00 50 GC□ N60○○-□□ 1 GNDL R/L2525K-220J ●● 25 25 125 25 25 44.5 2.00 40 GC□ □20○○-□□ 1 GNDL R/L2525K-320J ●● 25 25 125 25 25 44.5 3.00 40 GC□ □30○○-□□ 1 GNDL R/L2525K-425J ●● 25 25 125 25 25 50 4.00 50 GC□ □40○○-□□ 1 BX0520 6.0 XP02 LH040 GNDL R/L2525K-525J ●● 25 25 125 25 25 50 5.00 50 GC□ N50○○-□□ 1 GNDL R/L2525K-625J ●● 25 25 125 25 25 50 6.00 50 GC□ N60○○-□□ 1 Combine the insert with a holder such that the width of cut (CW) matches. The maximum cut-off diameter indicated above is for inserts with RE = 0.2 mm. Refer to F77 for applicable inserts. Fig 1 Fig 1 Fig 2 Width across Flats: 14 Width across Flats: 12 14 2014R1/8G1/8 G1/8 L 29 R1/8 Parts (Hose)  Dimensions (mm) Parts (Connector)  Dimensions (mm) Cat. No. Stock L Screw Standard Screw Standard Fig Cat. No. Stock Screw Standard Screw Standard Fig J-HOSE-G1/8-G1/8-200 ● 200 G1/8 G1/8 1 J-G1/8-R1/8-00 ● G1/8 R1/8 1 J-HOSE-G1/8-G1/8-300 ● 300 G1/8 G1/8 1 J-G1/8-R1/8-90 ● G1/8 R1/8 2 Hoses are sold separately. Connectors are sold separately. Piping Method for Hoses and Connectors Connector (Straight) Connector (Straight) J-G1/8-R1/8-00 J-G1/8-R1/8-00 Hose Machine Internal Coolant Holder J-HOSE-G1/8-G1/8-200 (Overall length 200mm) GNDM-J Type/GNDL-J Type R1/8 G1/8 J-HOSE-G1/8-G1/8-300 (Overall length 300mm) G1/8 R1/8 Rc1/8 Connector (L-Shaped) Connector (L-Shaped) Rc1/8 J-G1/8-R1/8-90 G1/8 J-G1/8-R1/8-90G1/8 G1/8 G1/8 R1/8 R1/8 · Apply sealant such as commercial sealing tape to the piping connection parts. · GNDM-J/GNDL-J Type holders have a plug (XP02) mounted on the holder back end at shipping. (See Fig. 1) When piping from the holder back end, mount a plug (XP02) on the bottom of the holder for use. (See Fig. 2) Fig. 1 Piping from bottom (at shipping) Fig. 2 Piping from back end Plug Plug XP02 XP02 Piping from back end Piping from bottom F76 N m Recommended Tightening Torque (N·m) ● mark: Standard stocked item (new product/expanded item)
