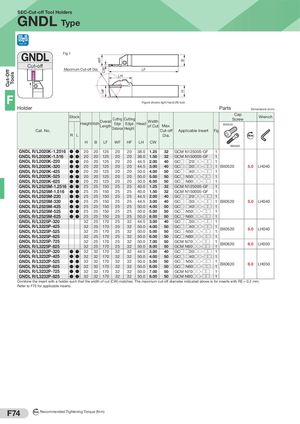

Общий каталог Sumitomo 2019 - 2020 - страница 388
Навигация
Каталог Sumitomo запасные части
Каталог Sumitomo сплавы и режимы
Техническая информация Sumitomo
Каталог Sumitomo пластины с алмазными вставками Sumidia
Каталог Sumitomo специальные торцевые фрезы
Общий каталог Sumitomo 2018 - 2019
GNDL SEC-Cut-off Tool Holders
Cut-off
GNDL
Cut-off
F
Fig 1 Maximum Cut-off Dia. LF LH
| Holder | Parts | Dim | ensions (mm) | ||||||||||
| Stock | Overall | Cutting | Cutting | Width | Cap Screw | Wrench | |||||||
| Cat. No. | R L | Heigh H | tWidth B | Length LF | Edge Distance WF | Edge Height HF | Head LH | of Cut CW | Max. Cut-off Dia. | Applicable Insert | Fig BX0520 BX0620 | N m | |
| GNDL R/L2020K-1.2516 | ●● | 20 | 20 | 125 | 20 | 20 | 38.0 | 1.25 | 32 | GCM N125005-GF | 1 | ||
| GNDL R/L2020K-1.516 | ●● | 20 | 20 | 125 | 20 | 20 | 38.0 | 1.50 | 32 | GCM N150005-GF | 1 | ||
| GNDL R/L2020K-220 | ●● | 20 | 20 | 125 | 20 | 20 | 44.5 | 2.00 | 40 | GC□ □20○○-□□ | 1 | ||
| GNDL R/L2020K-320 | ●● | 20 | 20 | 125 | 20 | 20 | 44.5 | 3.00 | 40 | GC□ □30○○-□□ | BX0520 1 | 5.0 | LH040 |
| GNDL R/L2020K-425 | ●● | 20 | 20 | 125 | 20 | 20 | 50.0 | 4.00 | 50 | GC□ □40○○-□□ | 1 | ||
| GNDL R/L2020K-525 | ●● | 20 | 20 | 125 | 20 | 20 | 50.0 | 5.00 | 50 | GC□N50○○-□□ | 1 | ||
| GNDL R/L2020K-625 | ●● | 20 | 20 | 125 | 20 | 20 | 50.0 | 6.00 | 50 | GC□N60○○-□□ | 1 | ||
| GNDL R/L2525M-1.2516 | ●● | 25 | 25 | 150 | 25 | 25 | 40.0 | 1.25 | 32 | GCM N125005-GF | 1 | ||
| GNDL R/L2525M-1.516 | ●● | 25 | 25 | 150 | 25 | 25 | 40.0 | 1.50 | 32 | GCM N150005-GF | 1 | ||
| GNDL R/L2525M-220 | ●● | 25 | 25 | 150 | 25 | 25 | 44.5 | 2.00 | 40 | GC□ □20○○-□□ | 1 | ||
| GNDL R/L2525M-320 | ●● | 25 | 25 | 150 | 25 | 25 | 44.5 | 3.00 | 40 | GC□ □30○○-□□ | BX0520 1 | 5.0 | LH040 |
| GNDL R/L2525M-425 | ●● | 25 | 25 | 150 | 25 | 25 | 50.0 | 4.00 | 50 | GC□ □40○○-□□ | 1 | ||
| GNDL R/L2525M-525 | ●● | 25 | 25 | 150 | 25 | 25 | 50.0 | 5.00 | 50 | GC□N50○○-□□ | 1 | ||
| GNDL R/L2525M-625 | ●● | 25 | 25 | 150 | 25 | 25 | 50.0 | 6.00 | 50 | GC□N60○○-□□ | 1 | ||
| GNDL R/L3225P-320 | 32 | 25 | 170 | 25 | 32 | 44.5 | 3.00 | 40 | GC□ □30○○-□□ | 1 | |||
| GNDL R/L3225P-425 | 32 | 25 | 170 | 25 | 32 | 50.0 | 4.00 | 50 | GC□ □40○○-□□ | BX0520 1 | 50 | LH040 | |
| GNDL R/L3225P-525 | 32 | 25 | 170 | 25 | 32 | 50.0 | 5.00 | 50 | GC□N50○○-□□ | 1 | . | ||
| GNDL R/L3225P-625 | 32 | 25 | 170 | 25 | 32 | 50.0 | 6.00 | 50 | GC□N60○○-□□ | 1 | |||
| GNDL R/L3225P-725 | 32 | 25 | 170 | 25 | 32 | 50.0 | 7.00 | 50 | GCM N70○○-□□ | 1 | |||
| GNDL R/L3225P-825 | 32 | 25 | 170 | 25 | 32 | 50.0 | 8.00 | 50 | GCM N80○○-□□ | BX0620 1 | 6.0 | LH050 | |
| GNDL R/L3232P-320 | ●● | 32 | 32 | 170 | 32 | 32 | 44.5 | 3.00 | 40 | GC□ □30○○-□□ | 1 | ||
| GNDL R/L3232P-425 | ●● | 32 | 32 | 170 | 32 | 32 | 50.0 | 4.00 | 50 | GC□ □40○○-□□ | 1 | ||
| GNDL R/L3232P-525 | ●● | 32 | 32 | 170 | 32 | 32 | 50.0 | 5.00 | 50 | GC□N50○○-□□ | BX0620 1 | 60 | LH050 |
| GNDL R/L3232P-625 | ●● | 32 | 32 | 170 | 32 | 32 | 50.0 | 6.00 | 50 | GC□N60○○-□□ | 1 | . | |
| GNDL R/L3232P-725 | ●● | 32 | 32 | 170 | 32 | 32 | 50.0 | 7.00 | 50 | GCM N70○○-□□ | 1 | ||
| GNDL R/L3232P-825 | ●● | 32 | 32 | 170 | 32 | 32 | 50.0 | 8.00 | 50 | GCM N80○○-□□ | 1 |
