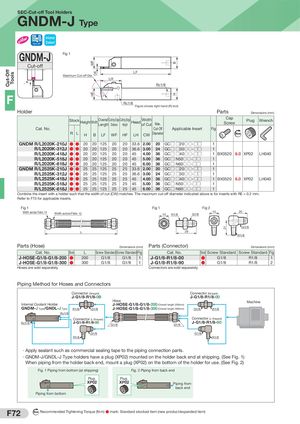

GNDM-J SEC-Cut-off Tool Holders
Internal Coolant Cut-off GNDM-J Fig 1
Cut-off
LF Maximum Cut-off Dia. LH * Rc1/8
F
Rc1/8 Figure shows right hand (R) tool.
Holder Parts
Dimensions (mm)
Stock Height Width Overall Cutting Edge Cutting Edge Width Cap
Head Plug Wrench
Length Distance Height of Cut Max. Screw
Cat. No. Cut-Off Applicable Insert Fig
| R L | H | LF B WF | HF | LH CW | Diameter | N m | |||
| GNDM R/L2020K-210J | ● ● | 20 20 125 | 20 | 20 33.6 | 2.00 | 20 | GC□ □20○○-□□ | 1 | |
| GNDM R/L2020K-312J | ● ● | 20 20 125 | 20 | 20 36.6 | 3.00 | 24 | GC□ □30○○-□□ | 1 | |
| GNDM R/L2020K-418J | ● ● | 20 20 125 | 20 | 20 45 | 4.00 | 36 | GC□ □40○○-□□ | 1 | LH040 XP02 BX0520 6.0 |
| GNDM R/L2020K-518J | ● ● | 20 20 125 | 20 | 20 45 | 5.00 | 36 | GC□ N50○○-□□ | 1 | |
| GNDM R/L2020K-618J | ● ● | 20 20 125 | 20 | 20 45 | 6.00 | 36 | GC□ N60○○-□□ | 1 | |
| GNDM R/L2525K-210J | ● ● | 25 25 125 | 25 | 25 33.6 | 2.00 | 20 | GC□ □20○○-□□ | 1 | |
| GNDM R/L2525K-312J | ● ● | 25 25 125 | 25 | 25 36.6 | 3.00 | 24 | GC□ □30○○-□□ | 1 | |
| GNDM R/L2525K-418J | ● ● | 25 25 125 | 25 | 25 45 | 4.00 | 36 | GC□ □40○○-□□ | 1 | LH040 XP02 BX0520 6.0 |
| GNDM R/L2525K-518J | ● ● | 25 25 125 | 25 | 25 45 | 5.00 | 36 | GC□ N50○○-□□ | 1 | |
| GNDM R/L2525K-618J | ● ● | 25 25 125 | 25 | 25 45 | 6.00 | 36 | GC□ N60○○-□□ | 1 | |
| Combine the insert with a holder such that the width of cut (CW) matches. The maximum cut-off diameter indicated above is for inserts with RE = 0.2 mm. | |||||||||
| Refer to F73 for applicable inserts. | |||||||||
| Fig 1 | Fig 1 | Fig 2 | |||||||
| Width across Flats: 14 | 14 | 20 |
Width across Flats: 12 14 R1/8 G1/8
G1/8 L 29 R1/8
Parts (Hose) Parts (Connector)
Dimensions (mm) Dimensions (mm)
Cat. No. Stock L Screw Standard Screw Standard Fig Cat. No. Stock Screw Standard Screw Standard Fig
| J-HOSE-G1/8-G1/8-200 | ● | 200 | G1/8 | G1/8 | 1 | J-G1/8-R1/8-00 | ● | G1/8 | R1/8 | 1 |
| J-HOSE-G1/8-G1/8-300 | ● | 300 | G1/8 | G1/8 | 1 | J-G1/8-R1/8-90 | ● | G1/8 | R1/8 | 2 |
Hoses are sold separately. Connectors are sold separately.
Piping Method for Hoses and Connectors
Connector (Straight) Connector (Straight) J-G1/8-R1/8-0000 J-G1/8-R1/8-0000 Hose Machine Internal Coolant Holder J-HOSE-G1/8-G1/8-200200 (Overall length 200mm)
GNDM-JJ Type/GNDL-JJ Type R1/8 G1/8 J-HOSE-G1/8-G1/8-300300 (Overall length 300mm) G1/8 R1/8
Rc1/8 Connector Connector (L-Shaped) (L-Shaped) J-G1/8-R1/8-9090 Rc1/8 J-G1/8-R1/8-9090
G1/8 G1/8 G1/8 G1/8 R1/8 R1/8
- Apply sealant such as commercial sealing tape to the piping connection parts.
- GNDM-J/GNDL-J Type holders have a plug (XP02) mounted on the holder back end at shipping. (See Fig. 1)
When piping from the holder back end, mount a plug (XP02) on the bottom of the holder for use. (See Fig. 2) Fig. 1 Piping from bottom (at shipping) Fig. 2 Piping from back end Plug Plug XP02 XP02 Piping from back end Piping from bottom
