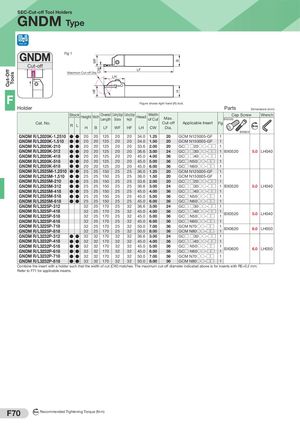

GNDM SEC-Cut-off Tool Holders
Cut-off
GNDM
Cut-off
F
Fig 1
Maximum Cut-off Dia.
LF LH
| Holder | Parts | Dime | nsions (mm) | ||||||||||
| Stock | Heih | Width | Overall | Cutting Edge | Cutting Edge | Head | Width | CapScre | w | Wrench | |||
| Cat. No. | R L | g H | B | Length LF | Distance WF | Height HF | LH | of Cut CW | Max. Cut-off Dia. | Applicable Insert | Fig BX0520 BX0620 | N m | |
| GNDM R/L2020K-1.2510 | ●● | 20 | 20 | 125 | 20 | 20 | 34.0 | 1.25 | 20 | GCM N125005-GF | 1 | ||
| GNDM R/L2020K-1.510 | ●● | 20 | 20 | 125 | 20 | 20 | 34.0 | 1.50 | 20 | GCM N150005-GF | 1 | ||
| GNDM R/L2020K-210 | ●● | 20 | 20 | 125 | 20 | 20 | 33.6 | 2.00 | 20 | GC□ □20○○-□□ | 1 | ||
| GNDM R/L2020K-312 | ●● | 20 | 20 | 125 | 20 | 20 | 36.6 | 3.00 | 24 | GC□ □30○○-□□ | BX0520 1 | 5.0 | LH040 |
| GNDM R/L2020K-418 | ●● | 20 | 20 | 125 | 20 | 20 | 45.0 | 4.00 | 36 | GC□ □40○○-□□ | 1 | ||
| GNDM R/L2020K-518 | ●● | 20 | 20 | 125 | 20 | 20 | 45.0 | 5.00 | 36 | GC□N50○○-□□ | 1 | ||
| GNDM R/L2020K-618 | ●● | 20 | 20 | 125 | 20 | 20 | 45.0 | 6.00 | 36 | GC□N60○○-□□ | 1 | ||
| GNDM R/L2525M-1.2510 | ●● | 25 | 25 | 150 | 25 | 25 | 36.0 | 1.25 | 20 | GCM N125005-GF | 1 | ||
| GNDM R/L2525M-1.510 | ●● | 25 | 25 | 150 | 25 | 25 | 36.0 | 1.50 | 20 | GCM N150005-GF | 1 | ||
| GNDM R/L2525M-210 | ●● | 25 | 25 | 150 | 25 | 25 | 33.6 | 2.00 | 20 | GC□ □20○○-□□ | 1 | ||
| GNDM R/L2525M-312 | ●● | 25 | 25 | 150 | 25 | 25 | 36.6 | 3.00 | 24 | GC□ □30○○-□□ | BX0520 1 | 5.0 | LH040 |
| GNDM R/L2525M-418 | ●● | 25 | 25 | 150 | 25 | 25 | 45.0 | 4.00 | 36 | GC□ □40○○-□□ | 1 | ||
| GNDM R/L2525M-518 | ●● | 25 | 25 | 150 | 25 | 25 | 45.0 | 5.00 | 36 | GC□N50○○-□□ | 1 | ||
| GNDM R/L2525M-618 | ●● | 25 | 25 | 150 | 25 | 25 | 45.0 | 6.00 | 36 | GC□N60○○-□□ | 1 | ||
| GNDM R/L3225P-312 | 32 | 25 | 170 | 25 | 32 | 36.6 | 3.00 | 24 | GC□ □30○○-□□ | 1 | |||
| GNDM R/L3225P-418 | 32 | 25 | 170 | 25 | 32 | 45.0 | 4.00 | 36 | GC□ □40○○-□□ | BX0520 1 | 50 | LH040 | |
| GNDM R/L3225P-518 | 32 | 25 | 170 | 25 | 32 | 45.0 | 5.00 | 36 | GC□N50○○-□□ | 1 | . | ||
| GNDM R/L3225P-618 | 32 | 25 | 170 | 25 | 32 | 45.0 | 6.00 | 36 | GC□N60○○-□□ | 1 | |||
| GNDM R/L3225P-718 | 32 | 25 | 170 | 25 | 32 | 50.0 | 7.00 | 36 | GCM N70○○-□□ | 1 BX0620 | 60 | LH050 | |
| GNDM R/L3225P-818 | 32 | 25 | 170 | 25 | 32 | 50.0 | 8.00 | 36 | GCM N80○○-□□ | 1 | . | ||
| GNDM R/L3232P-312 | ●● | 32 | 32 | 170 | 32 | 32 | 36.6 | 3.00 | 24 | GC□ □30○○-□□ | 1 | ||
| GNDM R/L3232P-418 | ●● | 32 | 32 | 170 | 32 | 32 | 45.0 | 4.00 | 36 | GC□ □40○○-□□ | 1 | ||
| GNDM R/L3232P-518 | ●● | 32 | 32 | 170 | 32 | 32 | 45.0 | 5.00 | 36 | GC□N50○○-□□ | 1 | ||
| GNDM R/L3232P-618 | ●● | 32 | 32 | 170 | 32 | 32 | 45.0 | 6.00 | 36 | GC□N60○○-□□ | BX0620 1 | 6.0 | LH050 |
| GNDM R/L3232P-718 | ●● | 32 | 32 | 170 | 32 | 32 | 50.0 | 7.00 | 36 | GCM N70○○-□□ | 1 | ||
| GNDM R/L3232P-818 | ●● | 32 | 32 | 170 | 32 | 32 | 50.0 | 8.00 | 36 | GCM N80○○-□□ | 1 |
