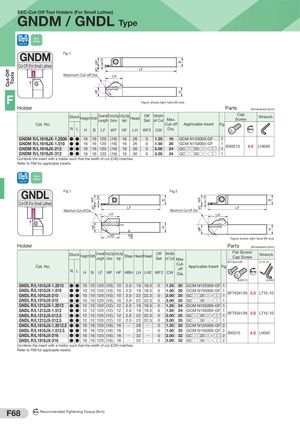

GNDM / GNDL SEC-Cut-Off Tool Holders (For Small Lathes)
Zero Offset Cut-off GNDM Fig 1
Cut-Off (For Small Lathes)
LF Maximum Cut-off Dia. LH
F
Figure shows right hand (R) tool.
Holder Parts
Dimensions (mm)
| Stock Height Width Overall Cutting Edge Cutting Edge | Off | Width | Cap | |||||
| Head | Wrench | |||||||
| Length | Distance | Height | Set | of Cut Max. | Screw |
Cat. No. Cut-off Applicable Insert Fig
| R L | H | B | LF | WF | HF | LH | WF2 CW | Dia. | N m | ||||
| GNDM R/L1616JX-1.2508 | ● ● | 16 16 120 (16) | 16 | 26 | 0 | 1.25 | 16 | GCM N125005-GF | 1 | ||||
| GNDM R/L1616JX-1.510 | ● ● | 16 16 120 (16) | 16 | 26 | 0 | 1.50 | 20 | GCM N150005-GF | 1 |
BX0515 4.0 LH040
| GNDM R/L1616JX-212 | ● ● | 16 16 120 (16) | 16 | 30 | 0 | 2.00 | 24 | GC□ □20○○-□□ | 1 |
| GNDM R/L1616JX-312 | ● ● | 16 16 120 (16) | 16 | 30 | 0 | 3.00 | 24 | GC□ □30○○-□□ | 1 |
Combine the insert with a holder such that the width of cut (CW) matches. Refer to F69 for applicable inserts.
Zero Offset Cut-off
GNDL Fig 1 Fig 2
Cut-Off (For Small Lathes) LF LF Maximum Cut-off Dia. Maximum Cut-off Dia. LH LH
LH2 Figure shows right hand (R) tool.
Holder Parts
Dimensions (mm)
| Stock Height Width Overall Cutting Edge Cutting Edge | Off | Width | Flat Screw/ | ||||
| Step Head Head | Wrench | ||||||
| Length Distance | Height | Set | of Cut Max. | Cap Screw |
| Cut- | BFTX0412N | LT15-10 | ||
| Cat. No. | Applicable Insert Fig | |||
| off |
| R L | H | B LF WF HF HBH LH LH2 WF2 CW | N m | |||
| Dia. | ||||||
| BX0515 | LH040 |
| GNDL R/L1010JX-1.2510 | ● ● | 10 10 120 (10) 10 | 2.0 | 18 18.3 | 0 | 1.25 20 | GCM N125005-GF 1 |
| GNDL R/L1010JX-1.510 | ● ● | 10 10 120 (10) 10 | 2.0 | 18 18.3 | 0 | 1.50 20 | GCM N150005-GF 1 |
BFTX0412N 3.0 LT15-10
| GNDL R/L1010JX-210 | ● ● | 10 10 120 (10) 10 | 2.0 | 22 22.3 | 0 | 2.00 20 | GC□ □20○○-□□ 1 |
| GNDL R/L1010JX-310 | ● ● | 10 10 120 (10) 10 | 2.0 | 22 22.3 | 0 | 3.00 20 | GC□ □30○○-□□ 1 |
| GNDL R/L1212JX-1.2512 | ● ● | 12 12 120 (12) 12 | 2.0 | 19 19.3 | 0 | 1.25 24 | GCM N125005-GF 1 |
| GNDL R/L1212JX-1.512 | ● ● | 12 12 120 (12) 12 | 2.0 | 19 19.3 | 0 | 1.50 24 | GCM N150005-GF 1 |
GNDL R/L1212JX-212.5 BFTX0412N 3.0 LT15-10
- 12 12 120 (12) 12 2.0 22 22.3 0 2.00 25 GC□ □20○○-□□ 1
| GNDL R/L1212JX-312.5 | ● ● | 12 12 120 (12) 12 | 2.0 | 22 22.3 | 0 | 3.00 25 | GC□ □30○○-□□ 1 | |
| GNDL R/L1616JX-1.2512.5 | ● ● | 16 16 120 (16) 16 | Q | 28 | Q | 0 | 1.25 20 | GCM N125005-GF 2 |
| GNDL R/L1616JX-1.512.5 | ● ● | 16 16 120 (16) 16 | Q | 28 | Q | 0 | 1.50 25 | GCM N150005-GF 2 |
BX0515 4.0 LH040
| GNDL R/L1616JX-216 | ● ● | 16 16 120 (16) 16 | Q | 32 | Q | 0 | 2.00 32 | GC□ □20○○-□□ 2 |
| GNDL R/L1616JX-316 | ● ● | 16 16 120 (16) 16 | Q | 32 | Q | 0 | 3.00 32 | GC□ □30○○-□□ 2 |
Combine the insert with a holder such that the width of cut (CW) matches. Refer to F69 for applicable inserts.
