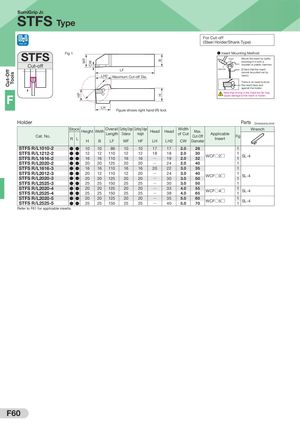

Cut-Of f Tools HF WF CW BH SumiGrip Jr. STFS Type For Cut-off Cut-off (Steel Holder/Shank Type) STFS Fig 1 ● Insert Mounting Method Insert Mount the insert by lightly knocking it in with a Cut-off wooden or plastic hammer. LF Hammer (Check that the insert cannot be pulled out by LH2 Maximum Cut-off Dia. hand.) There is no need to force the insert back end against the holder. Note that driving in the insert too far may F cause damage to the insert or holder. LH Figure shows right hand (R) tool. Holder Parts  Dimensions (mm) Cat. No. Stock Height Width OverallLengthCutting EdgeDistanceCutting EdgeHeightHeadRLHBLFWFHFLHHeadWidthof CutMax.Cut-OffLH2CWDiameterApplicableInsert Fig Wrench STFS R/L1010-2 ●● 10 10 86 10 10 17 17 2.0 28 1 STFS R/L1212-2STFS R/L1616-2 ●● 12 12 110 12●●1616110161216 18Q 1819 2.02.0 3032 WCF○2□ 11 SL-4 STFS R/L2020-2 ●● 20 20 125 20 20 Q 24 2.0 40 1 STFS R/L1616-3 ●● 16 16 110 16 16 20 22 3.0 35 1 STFS R/L2012-3STFS R/L2020-3 ●● 20 12 110 12●●2020125202020 QQ 2430 3.03.0 4050 WCF○3□ 11 SL-4 STFS R/L2525-3 ●● 25 25 150 25 25 Q 30 3.0 50 1 STFS R/L2020-4STFS R/L2525-4 ●● 20 20 125 20●●2525150252025 QQ 3338 4.04.0 5565 WCF○4□ 11 SL-4 STFS R/L2020-5STFS R/L2525-5 ●● 20 20 125 20●●2525150252025 QQ 3540 5.05.0 6070 WCF○5□ 11 SL-4 Refer to F61 for applicable inserts. F60
