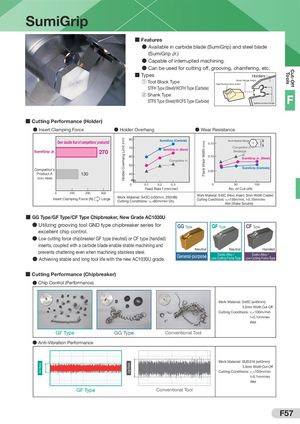

SumiGrip
- Features
- Available in carbide blade (SumiGrip) and steel blade (SumiGrip Jr.)
- Capable of interrupted machining.
- Can be used for cutting off, grooving, chamfering, etc.
- Types Holders ① Tool Block Type Small Wedge Angle
High Performance Insert
STFH Type (Steel)/WCFH Type (Carbide)
② Shank Type F
STFS Type (Steel)/WCFS Type (Carbide)
Optimal undercut shape
- Cutting Performance (Holder)
- Insert Clamping Force
- Holder Overhang
- Wear Resistance
| Over double that of competitors’ products!! | 80 | SumiGrip (Carbide) | |||
| Work Material Shape | |||||
| 0.15 | |||||
| 70 | Competitor A |
SumiGrip Jr. 270 SumiGrip Jr. (Steel)
Breakage 60 0.10 SumiGrip Jr. (Steel) Competitor A
50 Competitor's SumiGrip (Carbide) 130 0.05 Product A 40 3mm Width
| 0 | 0.1 | 0.2 | 0.3 | 0 | 50 | 100 | |
| Feed Rate f (mm/rev) | No. of Cut-offs |
| 0 | 100 | 200 | 300 | ||
| Work Material: S45C (ø50mm, 250HB) | Work Material: S45C (Hex), Insert: 3mm Width Coated | ||||
| Insert Clamping Force (N) | Large | Cutting Conditions: v =150m/min, f=0.15mm/rev |
Cutting Conditions: v =80m/min Dry c c Wet (Water Soluble)
- GG Type/GF Type/CF Type Chipbreaker, New Grade AC1030U
Utilizing grooving tool GND type chipbreaker series for GG GF CF
Type Type Type
excellent chip control.
- Low cutting force chipbreaker GF type (neutral) or CF type (handed) inserts, coupled with a carbide blade enable stable machining and
prevents chattering even when machining stainless steel. Neutral Neutral Handed
General-purpose Exotic Alloy / Exotic Alloy /
Achieving stable and long tool life with the new AC1030U grade. Low Cutting Force Type Low Cutting Force Type
- Cutting Performance (Chipbreaker)
- Chip Control (Performance)
GF Type GG Type Conventional Tool
- Anti-Vibration Performance
Work Material: S45C (ø40mm) 3.0mm Width Cut-Off Cutting Conditions: v =100m/min c f=0.1mm/rev Wet
Work Material: SUS316 (ø40mm) 3.0mm Width Cut-Off Cutting Conditions: v =100m/min c f=0.1mm/rev Wet
