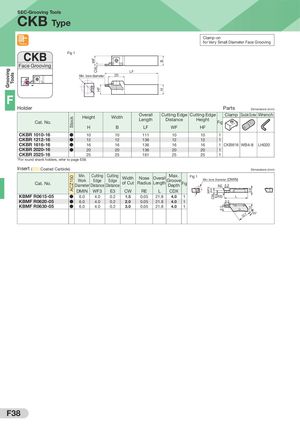

SEC-Grooving Tools
CKB Type
Clamp-on
Facing for Very Small Diameter Face Grooving
Fig 1


WF


B
Face Grooving


CW
Grooving


LF
Tools


Min. bore diameter 20


HF


H
F Holder Parts Dimensions (mm)
Overall Cutting Edge Cutting Edge Clamp Double Screw Wrench
Height Width
Stock


Length Distance Height
Cat. No. Fig
H B LF WF HF
CKBR 1010-16 ● 10 10 111 10 10 1
CKBR 1212-16 ● 12 12 136 12 12 1
CKBR 1616-16 ● 16 16 136 16 16 1 CKBW16 WB4-8 LH020
CKBR 2020-16 ● 20 20 136 20 20 1
CKBR 2525-16 25 25 161 25 25 1
*For round shank holders, refer to page E58.
Insert ( Coated Carbide) Dimensions (mm)
Min. Cutting Cutting Max. Fig 1
ACZ150


Width Nose Overall Min. bore Diameter (DMIN)
Work Edge Edge Groove
Cat. No. of Cut Radius Length Fig
Diameter Distance Distance Depth RE 4.3


WF3
DMIN WF3 E3 CW RE L CDX


3.8
KBMF R0615-05 ● 6.0 4.0 0.2 1.5 0.05 21.8 4.0 1

CW
E3
RE L
KBMF R0620-05 ● 6.0 4.0 0.2 2.0 0.05 21.8 4.0 1 5.3
KBMF R0630-05 ● 6.0 4.0 0.2 3.0 0.05 21.8 4.0 1


7.0
6.2
.7 55°
