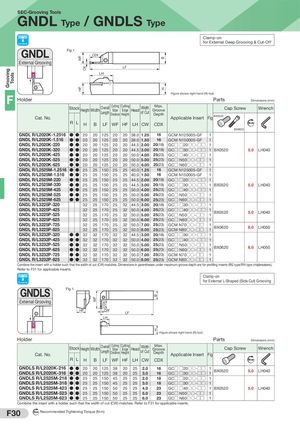

GNDL SEC-Grooving Tools / GNDLS
Clamp-on for External Deep Grooving & Cut-Off
ExternalGNDL
Fig 1 CDX
External Grooving
LF LH F Figure shows right hand (R) tool.
Holder Parts
Dimensions (mm)
Stock Height Width Overall Cutting Cutting Max. Cap Screw Wrench
Edge Edge Head Width Groove
Length of Cut Distance Height Depth Cat. No. Applicable Insert Fig BX0520
R L H B LF WF HF LH CW CDX N m
BX0620
| GNDL R/L2020K-1.2516 | 20 | 20 125 20 | 20 38.0 1.25 | 16 GCM N125005-GF | 1 | |
| GNDL R/L2020K-1.516 | 20 | 20 125 20 | 20 38.0 1.50 | 16 GCM N150005-GF | 1 | |
| GNDL R/L2020K-220 | 20 | 20 125 20 | 20 44.5 2.00 20(18) | GC□ □20○○-□□ | 1 | |
| GNDL R/L2020K-320 | 20 | 20 125 20 | 20 44.5 3.00 20(18) | GC□ □30○○-□□ | LH040 5.0 BX0520 1 | |
| GNDL R/L2020K-425 | 20 | 20 125 20 | 20 50.0 4.00 25(23) | GC□ □40○○-□□ | 1 | |
| GNDL R/L2020K-525 | 20 | 20 125 20 | 20 50.0 5.00 25(23) | GC□ N50○○-□□ | 1 | |
| GNDL R/L2020K-625 | 20 | 20 125 20 | 20 50.0 6.00 25(23) | GC□ N60○○-□□ | 1 | |
| GNDL R/L2525M-1.2516 | 25 | 25 150 25 | 25 40.0 1.25 | 16 GCM N125005-GF | 1 | |
| GNDL R/L2525M-1.516 | 25 | 25 150 25 | 25 40.0 1.50 | 16 GCM N150005-GF | 1 | |
| GNDL R/L2525M-220 | 25 | 25 150 25 | 25 44.5 2.00 20(18) | GC□ □20○○-□□ | 1 | |
| GNDL R/L2525M-320 | 25 | 25 150 25 | 25 44.5 3.00 20(18) | GC□ □30○○-□□ | LH040 5.0 BX0520 1 | |
| GNDL R/L2525M-425 | 25 | 25 150 25 | 25 50.0 4.00 25(23) | GC□ □40○○-□□ | 1 | |
| GNDL R/L2525M-525 | 25 | 25 150 25 | 25 50.0 5.00 25(23) | GC□ N50○○-□□ | 1 | |
| GNDL R/L2525M-625 | 25 | 25 150 25 | 25 50.0 6.00 25(23) | GC□ N60○○-□□ | 1 | |
| GNDL R/L3225P-320 | 32 | 25 170 25 | 32 44.5 3.00 20(18) | GC□ □30○○-□□ | 1 | |
| GNDL R/L3225P-425 | 32 | 25 170 25 | 32 50.0 4.00 25(23) | GC□ □40○○-□□ | 1 | |
| GNDL R/L3225P-525 | LH040 5.0 BX0520 | |||||
| 32 | 25 170 25 | 32 50.0 5.00 25(23) | GC□ N50○○-□□ | 1 | ||
| GNDL R/L3225P-625 | 32 | 25 170 25 | 32 50.0 6.00 25(23) | GC□ N60○○-□□ | 1 | |
| GNDL R/L3225P-725 | 32 | 25 170 25 | 32 50.0 7.00 25(23) | GCM N70○○-□□ | 1 | |
| GNDL R/L3225P-825 | LH050 6.0 BX0620 ○○ □□ | |||||
| 32 | 25 170 25 | 32 50.0 8.00 25(23) | GCM N80 | - 1 | ||
| GNDL R/L3232P-320 | 32 | 32 170 32 | 32 44.5 3.00 20(18) | GC□ □30○○-□□ | 1 | |
| GNDL R/L3232P-425 | 32 | 32 170 32 | 32 50.0 4.00 25(23) | GC□ □40○○-□□ | 1 | |
| GNDL R/L3232P-525 | 32 | 32 170 32 | 32 50.0 5.00 25(23) | GC□ N50○○-□□ | 1 | |
| GNDL R/L3232P-625 | LH050 6.0 BX0620 |
- 32 32 170 32 32 50.0 6.00 25(23) GC□ N60○○-□□ 1
| GNDL R/L3232P-725 | 32 | 32 170 32 | 32 50.0 7.00 25(23) | GCM N70○○-□□ | 1 | |
| GNDL R/L3232P-825 | 32 | 32 170 32 | 32 50.0 8.00 25(23) | GCM N80○○-□□ | 1 |
Combine the insert with a holder such that the width of cut (CW) matches. Dimensions in parentheses under maximum groove depth are for profiling inserts (RG type/RN type chipbreakers). Refer to F31 for applicable inserts. Clamp-on for External L-Shaped (Side Cut) Grooving
ExternalGNDLS
Fig 1
External Grooving
HF CW LF LH
Figure shows right hand (R) tool.
Holder Parts
Dimensions (mm) Stock Height Width Overall Cutting Cutting Max.
Edge Edge Head Width Groove Cap Screw Wrench
Length Distance Height of Cut Depth
Cat. No. Applicable Insert Fig
| R L | H | B | LF WF HF LH CW | CDX | N m | ||||||||
| GNDLS R/L2020K-216 | 20 | 20 125 38 | 20 | 25 | 2.0 | 16 | GC□ □20○○-□□ | 1 | |||||
| GNDLS R/L2020K-316 | BX0520 | 5.0 | LH040 |
- 20 20 125 38 20 25 3.0 16 GC□ □30○○-□□ 1
| GNDLS R/L2525M-218 | 25 | 25 150 45 | 25 | 25 | 2.0 | 18 | GC□ □20○○-□□ | 1 | ||||
| GNDLS R/L2525M-318 | 25 | 25 150 45 | 25 | 25 | 3.0 | 18 | GC□ □30○○-□□ | 1 | ||||
| GNDLS R/L2525M-423 | 25 | 25 150 50 | 25 | 25 | 4.0 | 23 | GC□ □40○○-□□ | 1 | BX0520 | 5.0 | LH040 | |
| GNDLS R/L2525M-523 | 25 | 25 150 50 | 25 | 25 | 5.0 | 23 | GC□ N50○○-□□ | 1 | ||||
| GNDLS R/L2525M-623 | 25 | 25 150 50 | 25 | 25 | 6.0 | 23 | GC□ N60○○-□□ | 1 |
Combine the insert with a holder such that the width of cut (CW) matches. Refer to F31 for applicable inserts.
