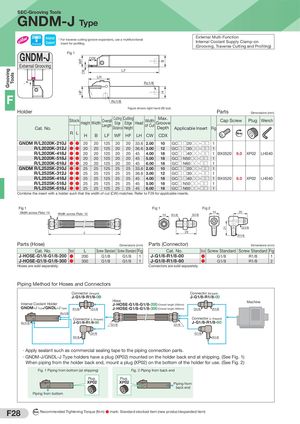

GNDM-J SEC-Grooving Tools
Internal External Multi-Function * For traverse cutting (groove expansion), use a multifunctional Internal Coolant Supply Clamp-on Coolant External insert for profiling. (Grooving, Traverse Cutting and Profiling) GNDM-J Fig 1 CDX
External Grooving
LF LH Rc1/8 *
F
Rc1/8
Holder Figure shows right hand (R) tool. Parts
Dimensions (mm)
Stock Cutting Cutting Max. Cap Screw Plug Wrench
Height Width Overall Edge Edge Head Width Groove
Length of Cut
Cat. No. Distance Height Depth Applicable Insert Fig
R L N m
H B LF WF HF LH CW CDX
| GNDM R/L2020K-210J | ● ● | 20 | 20 | 125 | 20 | 20 33.6 | 2.00 | 10 | GC□ □20○○-□□ | 1 | ||||
| GNDM R/L2020K-312J | ● ● | 20 | 20 | 125 | 20 | 20 36.6 | 3.00 | 12 | GC□ □30○○-□□ | 1 | ||||
| GNDM R/L2020K-418J | ● ● | 20 | 20 | 125 | 20 | 20 45 | 4.00 | 18 | GC□ □40○○-□□ | 1 | BX0520 | 6.0 | XP02 | LH040 |
| GNDM R/L2020K-518J | ● ● | 20 | 20 | 125 | 20 | 20 45 | 5.00 | 18 | GC□ N50○○-□□ | 1 | ||||
| GNDM R/L2020K-618J | ● ● | 20 | 20 | 125 | 20 | 20 45 | 6.00 | 18 | GC□ N60○○-□□ | 1 | ||||
| GNDM R/L2525K-210J | ● ● | 25 | 25 | 125 | 25 | 25 33.6 | 2.00 | 10 | GC□ □20○○-□□ | 1 | ||||
| GNDM R/L2525K-312J | ● ● | 25 | 25 | 125 | 25 | 25 36.6 | 3.00 | 12 | GC□ □30○○-□□ | 1 | ||||
| GNDM R/L2525K-418J | ● ● | 25 | 25 | 125 | 25 | 25 45 | 4.00 | 18 | GC□ □40○○-□□ | 1 | BX0520 | 6.0 | XP02 | LH040 |
| GNDM R/L2525K-518J | ● ● | 25 | 25 | 125 | 25 | 25 45 | 5.00 | 18 | GC□ N50○○-□□ | 1 | ||||
| GNDM R/L2525K-618J | ● ● | 25 | 25 | 125 | 25 | 25 45 | 6.00 | 18 | GC□ N60○○-□□ | 1 |
Combine the insert with a holder such that the width of cut (CW) matches. Refer to F29 for applicable inserts.
Fig 1 Fig 1 Fig 2
Width across Flats: 14 14 20
Width across Flats: 12 14 R1/8 G1/8
G1/8 L 29 R1/8
Parts (Hose) Parts (Connector)
Dimensions (mm) Dimensions (mm)
Cat. No. Stock L Screw Standard Screw Standard Fig Cat. No. Stock Screw Standard Screw Standard Fig
| J-HOSE-G1/8-G1/8-200 | ● | 200 | G1/8 | G1/8 | 1 | J-G1/8-R1/8-00 | ● | G1/8 | R1/8 | 1 |
| J-HOSE-G1/8-G1/8-300 | ● | 300 | G1/8 | G1/8 | 1 | J-G1/8-R1/8-90 | ● | G1/8 | R1/8 | 2 |
Hoses are sold separately. Connectors are sold separately.
Piping Method for Hoses and Connectors
Connector (Straight) Connector (Straight) J-G1/8-R1/8-0000 J-G1/8-R1/8-0000 Hose Machine Internal Coolant Holder J-HOSE-G1/8-G1/8-200200 (Overall length 200mm)
GNDM-JJ /GNDL-JJ J-HOSE-G1/8-G1/8-300300
Type Type R1/8 G1/8 (Overall length 300mm) G1/8 R1/8
Rc1/8 Connector Connector (L-Shaped) (L-Shaped) J-G1/8-R1/8-9090 Rc1/8 J-G1/8-R1/8-9090 G1/8 G1/8 G1/8 G1/8 R1/8 R1/8
- Apply sealant such as commercial sealing tape to the piping connection parts.
- GNDM-J/GNDL-J Type holders have a plug (XP02) mounted on the holder back end at shipping. (See Fig. 1) When piping from the holder back end, mount a plug (XP02) on the bottom of the holder for use. (See Fig. 2) Fig. 1 Piping from bottom (at shipping) Fig. 2 Piping from back end
Plug Plug
XP02 XP02 Piping from
back end Piping from bottom
