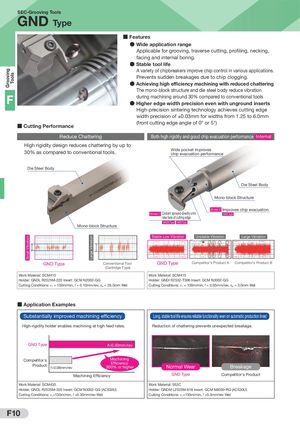

Grooving Tools Small Vibration Large Vibration SEC-Grooving Tools GND Type ■ Features ● Wide application range Applicable for grooving, traverse cutting, profiling, necking, facing and internal boring. ● Stable tool life A variety of chipbreakers improve chip control in various applications. Prevents sudden breakages due to chip clogging. ● Achieving high efficiency machining with reduced chattering The mono-block structure and die steel body reduce vibration F during machining around 30% compared to conventional tools● Higher edge width precision even with unground inserts High-precision sintering technology achieves cutting edge width precision of ±0.03mm for widths from 1.25 to 6.0mm ■ Cutting Performance (front cutting edge angle of 0° or 5°) Reduce Chattering Both high rigidity and good chip evacuation performance Internal High rigidity design reduces chattering by up to 30% as compared to conventional tools. Wide pocket improveschip evacuation performance Die Steel Body Die Steel Body Mono-block Structure Oil Hole ② Improves chip evacuation Oil Hole ① Coolant sprayed directly onto GNDI Type rake face of cutting edge GNDIS Type GNDI Type Mono-block Structure Stable Low Vibration Unstable Vibration Large Vibration Packing of chips GND Type Conventional Tool GND Type Competitor's Product A Competitor's Product B (Cartridge Type) Work Material: SCM415 Work Material: SCM415 Holder: GNDL R2525M-220 Insert: GCM N2002-GG Holder: GNDI R2532-T306 Insert: GCM N3002-GG Cutting Conditions: vc = 100m/min, f = 0.10mm/rev, ap = 20.0mm Wet Cutting Conditions: vc = 100m/min, f = 0.05mm/rev, ap = 3.0mm Wet ■ Application Examples Substantially improved machining efficiency Long, stable tool life ensures reliable functionality even on automatic production lines! High-rigidity holder enables machining at high feed rates. Reduction of chattering prevents unexpected breakage. GND Type f=0.30mm/rev Competitor's Machining Product f=0.08mm/rev Efficiency300% or higher Normal Wear Breakage Machining Efficiency GND Type Competitor's Product Work Material: SCM435 Work Material: S53C Holder: GNDL R2525M-320 Insert: GCM N3002-GG (AC530U) Holder: GNDM L2525M-618 Insert: GCM N6030-RG (AC530U) Cutting Conditions: vc=130m/min, f =0.30mm/rev Wet Cutting Conditions: vc=130m/min, f =0.3mm/rev Wet F10
