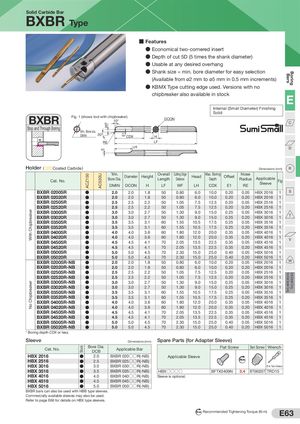

Общий каталог Sumitomo 2019 - 2020 - страница 307

With ChipbreakerNo Chipbreaker Stock ACZ150 AC530U 0 WF E1 Very Smal Diameter TurningBars Smal Diameter TurningBoring Solid Carbide Bar BXBR Type ■ Features ● Economical two-cornered insert ● Depth of cut 5D (5 times the shank diameter) ● Usable at any desired overhang ● Shank size = min. bore diameter for easy selection (Available from ø2 mm to ø5 mm in 0.5 mm increments) ● KBMX Type cutting edge used. Versions with no chipbreaker also available in stock E Internal (Small Diameter) Finishing Solid BXBR Fig. 1 (shows tool with chipbreaker)10° DCON C Stop and Through Boring Min. Bore dia. DMIN 20° CDX H RE LF LH D Holder ( Coated Carbide ) Dimensions (mm) R Cat. No. *Min.Bore Dia.DiameterHeight OverallLengthCutting EdgeDistanceDMINDCONHLFWFHeadMax. BoringDepthOffsetLHCDXE1NoseRadiusREApplicableSleeveFig BXBR 02005R ● 2.0 2.0 1.8 50 0.80 6.0 10.0 0.20 0.05 HBX 2016 1 S BXBR 02020R ● 2.0 2.0 1.8 50 0.80 6.0 10.0 0.20 0.20 HBX 2016 1 BXBR 02505R ● 2.5 2.5 2.2 50 1.05 7.5 12.5 0.20 0.05 HBX 2516 1 BXBR 02520R ● 2.5 2.5 2.2 50 1.05 7.5 12.5 0.20 0.20 HBX 2516 1 BXBR 03005R ● 3.0 3.0 2.7 50 1.30 9.0 15.0 0.25 0.05 HBX 3016 1 BXBR 03020R ● 3.0 3.0 2.7 50 1.30 9.0 15.0 0.25 0.20 HBX 3016 1 T BXBR 03505R ● 3.5 3.5 3.1 60 1.55 10.5 17.5 0.25 0.05 HBX 3516 1 BXBR 03520R ● 3.5 3.5 3.1 60 1.55 10.5 17.5 0.25 0.20 HBX 3516 1 BXBR 04005R ● 4.0 4.0 3.6 60 1.80 12.0 20.0 0.35 0.05 HBX 4016 1 BXBR 04020R ● 4.0 4.0 3.6 60 1.80 12.0 20.0 0.35 0.20 HBX 4016 1 V BXBR 04505R ● 4.5 4.5 4.1 70 2.05 13.5 22.5 0.35 0.05 HBX 4516 1 BXBR 04520R ● 4.5 4.5 4.1 70 2.05 13.5 22.5 0.35 0.20 HBX 4516 1 BXBR 05005R ● 5.0 5.0 4.5 70 2.30 15.0 25.0 0.40 0.05 HBX 5016 1 BXBR 05020R ● 5.0 5.0 4.5 70 2.30 15.0 25.0 0.40 0.20 HBX 5016 1 BXBR 02005R-NB ● 2.0 2.0 1.8 50 0.80 6.0 10.0 0.20 0.05 HBX 2016 1 W BXBR 02020R-NB ● 2.0 2.0 1.8 50 0.80 6.0 10.0 0.20 0.20 HBX 2016 1 BXBR 02505R-NB ● 2.5 2.5 2.2 50 1.05 7.5 12.5 0.20 0.05 HBX 2516 1 BXBR 02520R-NB ● 2.5 2.5 2.2 50 1.05 7.5 12.5 0.20 0.20 HBX 2516 1 BXBR 03005R-NB ● 3.0 3.0 2.7 50 1.30 9.0 15.0 0.25 0.05 HBX 3016 1 BXBR 03020R-NB ● 3.0 3.0 2.7 50 1.30 9.0 15.0 0.25 0.20 HBX 3016 1 BXBR 03505R-NB ● 3.5 3.5 3.1 60 1.55 10.5 17.5 0.25 0.05 HBX 3516 1 BXBR 03520R-NB ● 3.5 3.5 3.1 60 1.55 10.5 17.5 0.25 0.20 HBX 3516 1 BXBR 04005R-NB ● 4.0 4.0 3.6 60 1.80 12.0 20.0 0.35 0.05 HBX 4016 1 BXBR 04020R-NB ● 4.0 4.0 3.6 60 1.80 12.0 20.0 0.35 0.20 HBX 4016 1 BXBR 04505R-NB ● 4.5 4.5 4.1 70 2.05 13.5 22.5 0.35 0.05 HBX 4516 1 BXBR 04520R-NB ● 4.5 4.5 4.1 70 2.05 13.5 22.5 0.35 0.20 HBX 4516 1 BXBR 05005R-NB ● 5.0 5.0 4.5 70 2.30 15.0 25.0 0.40 0.05 HBX 5016 1 BXBR 05020R-NB ● 5.0 5.0 4.5 70 2.30 15.0 25.0 0.40 0.20 HBX 5016 1 * Boring depth CDX or less. Sleeve Dimensions (mm) Spare Parts (for Adapter Sleeve) Cat. No. Bore Dia.DCB Applicable Bar Flat Screw Set Screw Wrench HBX 2016 ● 2.0 BXBR 020○○R(-NB) Applicable Sleeve HBX 2516 ● 2.5 BXBR 025○○R(-NB) Nm HBX 3016 ● 3.0 BXBR 030○○R(-NB) (For Torx Holes) HBX 3516 ● 3.5 BXBR 035○○R(-NB) HBX○○○○ BFTX0409N 3.4 BT06035T TRD15 HBX 4016 ● 4.0 BXBR 040○○R(-NB) Sleeve is optional. HBX 4516 ● 4.5 BXBR 045○○R(-NB) HBX 5016 ● 5.0 BXBR 050○○R(-NB) BXBR bars can also be used with HBB type sleeves. Commercially available sleeves may also be used. Refer to page E66 for details on HBX type sleeves. N m Recommended Tightening Torque (N·m) E63
