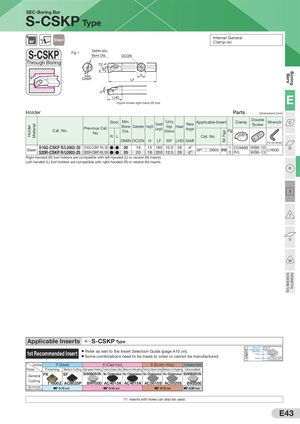

SEC-Boring Bar S-CSKP Type Internal General 75° Steel Clamp-on S-CSKP Fig 1 DMIN Min. Bore Dia. DCON Through Boring 75˚ WF Boring H Bars GAMF LF -5° LHD Figure shows right-hand (R) tool. E Holder Parts Dimensions (mm) Double Stock Min. Overall Cutting Rake Applicable Insert Clamp Wrench C Screw Material Bore Diameter Height Edge Head Holder Previous Cat. Length Angle Cat. No. Dia. Distance Fig Ref. Page No. R L Cat. No. DMIN DCON H LF WF LHD GAMF (For Hex Socket) S16Q-CSKP R/L0903-20 S16Q-CSKP R/L 09 ● ● 20 16 15 180 10.0 28 -4° 1 CCM6B WB6-10 D Steel SP□□0903 B100 LH030 S20R-CSKP R/L0903-25 S20R-CSKP R/L 09 ● ● 25 20 18 200 12.5 28 -2° 1 R/L WB6-13 Right-handed (R) tool holders are compatible with left-handed (L) or neutral (N) inserts. Left-handed (L) tool holders are compatible with right-handed (R) or neutral (N) inserts. R S T V W Very Small Diameter Turning Small Diameter Turning Applicable Inserts S-CSKP Type Name of Chipbreaker/ GU Legend ● Refer as well to the Insert Selection Guide (page A10 on). 1st Recommended Insert CBN/PCD Photo ● Some combinations need to be made to order or cannot be manufactured. Grade AC8025P Cutting Range P (Steel) K (Cast Iron) S (Exotic Alloy) H (Hardened Steel) Process Finishing Medium Cutting High-speed Finishing Finishing to Medium Cutting Medium to Roughing Finishing to Medium Cutting Medium to Roughing Uncoated FK SF SUMIBORON No Chipbreaker No Chipbreaker No Chipbreaker No Chipbreaker SUMIBORON General Cutting T1500Z AC8025P BN7000 AC4015K AC4015K AC5015S AC5025S BN2000 Recommended Cutting Conditions A10 on A16 on A18 on A20 on 11° inserts with holes can also be used. E43
