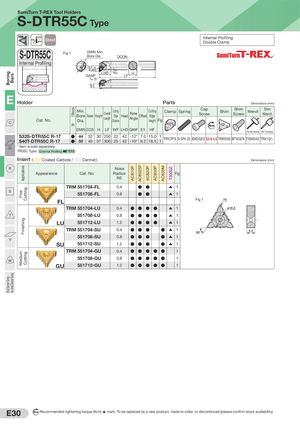

SumiTurn T-REX Tool Holders S-DTR55C Type Internal Profiling 93˚ Steel Double Clamp S-DTR55C Fig 1 DMIN Min. Bore Dia. DCON Internal Profiling ° WF 93 E1 LHD H Boring Bars GAMF LF -5° HF E Holder Parts Dimensions (mm) Cap Shim Shim Stock Min. Cutting Cutting Clamp Spring Shim Wrench Overall Rake Screw Screw Wrench Bore Diameter Height Edge Head Offset Edge Cat. No. Length Angle C Dia. Distance Height Fig R Nm DMIN DCON H LF WF LHD GAMF E1 HF (For Hex Socket) (For Torx Holes) S32S-DTR55C R-17 ● 44 32 30 250 22 42 -12° 7.0 15.0 1 TRCP3 S-SP4-20 BX0520 3.5 to 4.5 TRW5505 BFTX0307N TSW040 TRX10(*) S40T-DTR55C R-17 ● 50 40 37 300 25 42 -10° 6.2 18.5 1 * Item is sold separately. D TR55C Type: External Profiling C13 Insert ( Coated Carbide / Cermet ) Dimensions (mm) AC8025P AC630M Applications AC810P AC820P AC830P R Nose T3000Z Appearance Cat. No. Radius Fig RE TRM 551704-FL 0.4 ● ● ▲ 1 Cutting S Fine TRM 551708-FL 0.8 ● ● ▲ 1 Fig 1 RE FL TRM 551704-LU 0.4 ● ● ● ● ▲ 1 T TRM 551708-LU 0.8 ● ● ● ● ▲ 1 Finishing LU TRM 551712-LU 1.2 ● ● ● ● ▲ 1 TRM 551704-SU 0.4 ● ● ● ● ▲ 1 TRM 551708-SU 0.8 ● ● ● ● ▲ 1 V SU TRM 551712-SU 1.2 ● ● ● ● ▲ 1 TRM 551704-GU 0.4 ● ● ● ● ● 1 Medium Cutting TRM 551708-GU 0.8 ● ● ● ● ● 1 W GU TRM 551712-GU 1.2 ● ● ● ● ● 1 Very Small Diameter Turning Small Diameter Turning E30 N m Recommended tightening torque (N·m) ▲ mark: To be replaced by a new product, made to order, or discontinued (please confirm stock availability)
