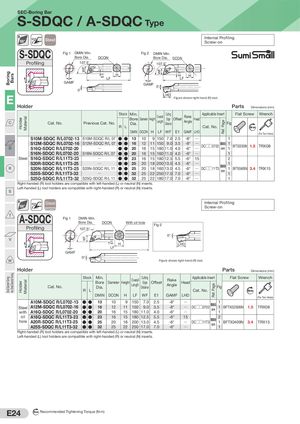

Общий каталог Sumitomo 2019 - 2020 - страница 268

SEC-Boring Bar S-SDQC / A-SDQC Type Internal Profiling 107.5° Steel Screw-on S-SDQC Fig 1 DMIN Min. Bore Dia. DCON Fig 2 DMIN Min. Bore Dia. DCON Profiling 107.5˚ 107.5° WF WF Boring E1 H Bars E1 H LF LF GAMF GAMF 0° 0° E Holder LHD Figure shows right-hand (R) tool. Parts Dimensions (mm) Stock Min. Cutting Applicable Insert Flat Screw Wrench Overall Rake Material Bore Diameter Height Edge Offset Head Holder Length Angle Ref. Page C Cat. No. Previous Cat. No. Dia. Distance Fig R L Cat. No. Nm DMIN DCON H LF WF E1 GAMF LHD (For Torx Holes) S10M-SDQC R/L0702-13 S10M-SDQC R/L 07 ● ● 13 10 9 150 7.0 2.5 -8° Q 1 S12M-SDQC R/L0702-16 S12M-SDQC R/L 07 ● ● 16 12 11 150 9.0 3.5 -8° Q B85 1 DC□□0702 BFTX02506N 1.5 TRX08 D S16Q-SDQC R/L0702-20 Q ● ● 20 16 15 180 11.0 4.0 -6° Q on 1 S16N-SDQC R/L0702-20 S16N-SDQC R/L 07 ● ● 20 16 15 160 11.0 4.0 -6° Q 1 Steel S16Q-SDQC R/L11T3-23 Q ● ● 23 16 15 180 12.5 5.5 -6° 15 2 S20R-SDQC R/L11T3-25 Q ● ● 25 20 18 200 13.0 4.5 -6° Q 1 B88 R S20N-SDQC R/L11T3-25 S20N-SDQC R/L 11 ● ● 25 20 18 160 13.0 4.5 -6° Q DC□□11T3 1 BFTX0409N 3.4 TRX15 on S25S-SDQC R/L11T3-32 Q ● ● 32 25 22 250 17.0 7.0 -6° Q 1 S25Q-SDQC R/L11T3-32 S25Q-SDQC R/L 11 ● ● 32 25 22 180 17.0 7.0 -6° Q 1 Right-handed (R) tool holders are compatible with left-handed (L) or neutral (N) inserts. Left-handed (L) tool holders are compatible with right-handed (R) or neutral (N) inserts. S 107.5° Steel Internal Profiling Coolant Hole Screw-on A-SDQC T Fig 1 DMIN Min. Bore Dia. DCON With oil hole Fig 2 Profiling 107.5° 0° WF V E1 H LHD LF GAMF 0° W Figure shows right-hand (R) tool. Holder Parts Dimensions (mm) Very Small Diameter Turning Stock Min. Cutting Applicable Insert Flat Screw Wrench Small Diameter Turning Overall Rake Material Bore Diameter Height Edge Offset Head Holder Length Angle Ref. Page Cat. No. Dia. Distance Fig R L Cat. No. Nm DMIN DCON H LF WF E1 GAMF LHD (For Torx Holes) A10M-SDQC R/L0702-13 ● ● 13 10 9 150 7.0 2.5 -8° Q 1 B85 Steel A12M-SDQC R/L0702-16 ● ● 16 12 11 150 9.0 3.5 -8° Q DC□□0702 1 BFTX02506N 1.5 TRX08 on with A16Q-SDQC R/L0702-20 ● ● 20 16 15 180 11.0 4.0 -6° Q 1 oil A16Q-SDQC R/L11T3-23 ● ● 23 16 15 180 12.5 5.5 -6° 15 2 B88 hole A20R-SDQC R/L11T3-25 ● ● 25 20 18 200 13.0 4.5 -6° Q DC□□11T3 1 BFTX0409N 3.4 TRX15 on A25S-SDQC R/L11T3-32 ● ● 32 25 22 250 17.0 7.0 -6° Q 1 Right-handed (R) tool holders are compatible with left-handed (L) or neutral (N) inserts. Left-handed (L) tool holders are compatible with right-handed (R) or neutral (N) inserts. E24 N m Recommended Tightening Torque (N·m)
