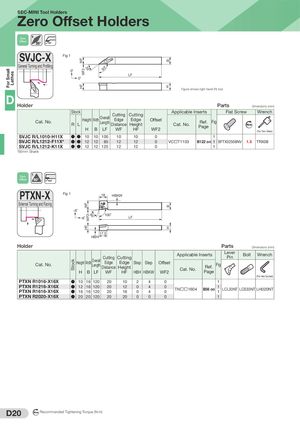

SEC-MINI Tool Holders Zero Offset Holders Zero Offset 93° SVJC-X Fig 1 WF B General Turning and Profiling 35˚ ˚ 93 WF2 0˚ For Small Lathes LF 0˚ HF H Figure shows right-hand (R) tool. D Holder Parts Dimensions (mm) Stock Applicable Inserts Flat Screw Wrench Cutting Cutting Overall Edge Edge Cat. No. Height Width Offset Ref. Fig R L Length Distance Height Cat. No. Nm Page H B LF WF HF WF2 (For Torx Holes) SVJC R/L1010-H11X ● ● 10 10 100 10 10 0 1 SVJC R/L1212-F11X* ● ● 12 12 85 12 12 0 VC□T1103 B122 on 1 BFTX02508NV 1.5 TRX08 SVJC R/L1212-K11X ● ● 12 12 125 12 12 0 1 *85mm Shank Zero Offset 100˚ PTXN-X Fig 1 18 HBKW External Turning and Facing WF B -6˚ 100˚ WF2 60 -6˚ LF ˚ HF H 17.5 HBH Holder Parts Dimensions (mm) Lever Applicable Inserts Bolt Wrench Cutting Cutting Pin Overall Edge Edge Stock Cat. No. Height Width Step Step Offset Fig Length Distance Height Ref. Cat. No. H B LF WF HF HBH HBKW WF2 Page (For Hex Socket) PTXN R1016-X16X ● 10 16 120 20 10 2 4 0 1 PTXN R1216-X16X ● 12 16 120 20 12 0 4 0 1 TN□□1604 B56 on LCL33NT LCS33NT LH020NT PTXN R1616-X16X ● 16 16 120 20 16 0 4 0 1 PTXN R2020-X16X ● 20 20 120 20 20 0 0 0 1 D20 N m Recommended Tightening Torque (N·m)
