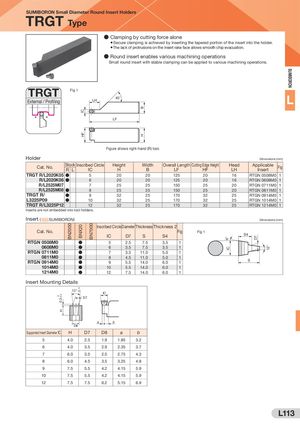

SUMIBORON 0 0.3-0.3H BN2000 ICHFBNX20 BN7000 BH 6°IC D7 12° SUMIBORON Small Diameter Round Insert Holders TRGT Type ● Clamping by cutting force alone ● Secure clamping is achieved by inserting the tapered portion of the insert into the holder. ● The lack of protrusions on the insert rake face allows smooth chip evacuation. ● Round insert enables various machining operations Small round insert with stable clamping can be applied to various machining operations. TRGT Fig 1 45°External / Pro lingLH L LF Figure shows right-hand (R) tool. Holder  Dimensions (mm) Cat. No. Stock Inscribed Circle HeightRLICH Width Overall Length Cutting Edge Height HeadBLFHFLH ApplicableInsertFig TRGT R/L2020K05 ● 5 20 20 125 20 16 RTGN 0508M0 1 TRGT R/L2020K06 ● 6 20 20 125 20 16 RTGN 0608M0 1 TRGT R/L2525M07 7 25 25 150 25 20 RTGN 0711M0 1 TRGT R/L2525M08 ● 8 25 25 150 25 20 RTGN 0811M0 1 TRGT R/ ● 9 32 25 170 32 25 RTGN 0914M0 1 L3225P09 ● 10 32 25 170 32 25 RTGN 1014M0 1 TRGT R/L3225P12 12 32 25 170 32 25 RTGN 1214M0 1 Inserts are not embedded into tool holders. Insert ( SUMIBORON) Dimensions (mm) Inscribed Circle Diameter Thickness Thickness 2 Cat. No. Fig Fig 1 IC D7 S S4 S4 RTGN 0508M0 ● 5 2.5 7.5 3.5 1 RTGN 0608M0 ● 6 3.5 7.5 3.5 1 RTGN 0711M0 ● 7 3.5 11.0 5.0 1 RTGN 0811M0 ● 8 4.5 11.0 5.0 1 RTGN 0914M0 ● 9 5.5 14.0 6.0 1 S RTGN 1014M0 ● 10 5.5 14.0 6.0 1 RTGN 1214M0 ● 12 7.5 14.0 6.0 1 Insert Mounting Details 0 12°-10´ IC D7 a b D8 Dimensions in mm Supported Insert Diameter IC H D7 D8 a b 5 4.0 2.5 1.9 1.85 3.2 6 4.0 3.5 2.9 2.35 3.7 7 6.0 3.5 2.5 2.75 4.3 8 6.0 4.5 3.5 3.25 4.8 9 7.5 5.5 4.2 4.15 5.9 10 7.5 5.5 4.2 4.15 5.9 12 7.5 7.5 6.2 5.15 6.9 L113
