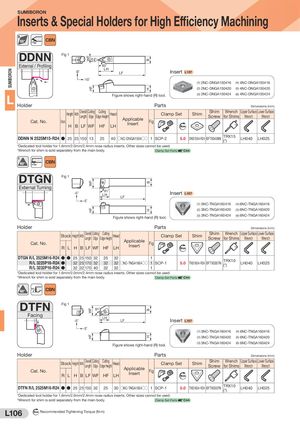

Общий каталог Sumitomo 2019 - 2020 - страница 1136

SUMIBORON WF 55˚HFWFHFWFHF BHBHBH SUMIBORON Inserts & Special Holders for High Efficiency Machining 63˚ DDNN Fig 1 External / Pro ling 63˚ LH0˚ LF Insert L107 -10˚ (1) 2NC-DNGA150416 (4) 4NC-DNGA150416 (2) 2NC-DNGA150420 (5) 4NC-DNGA150420 L Figure shows right-hand (R) tool. (3) 2NC-DNGA150424 (6) 4NC-DNGA150424 Holder Parts  Dimensions (mm) Cat. No. Height Width Overall Length Cutting Edge Cutting Edge Height HeadStockHBLFWFHFLHApplicableInsertFigClamp Set Shim Shim Wrench Upper Surface Lower SurfaceScrewfor ShimsWrenchWrenchNm DDNN N 2525M15-R24 ● 25 25 150 13 25 40 ○NC-DNGA1504○○ 1 SCP-2 5.0 DNS1504-R24 BFTX0409N TRX15(*) LH040 LH025 *Dedicated tool holder for 1.6mm/2.0mm/2.4mm nose radius inserts. Other sizes cannot be used. *Wrench for shim is sold separately from the main body. Clamp Set Parts C44 91˚ DTGN Fig 1 External Turning -5˚ 91˚LH LF Insert L107 -5˚ (1) 3NC-TNGA160416 (4) 6NC-TNGA160416 (2) 3NC-TNGA160420 (5) 6NC-TNGA160420 Figure shows right-hand (R) tool. (3) 3NC-TNGA160424 (6) 6NC-TNGA160424 Holder Parts  Dimensions (mm) Cat. No. Stock Height Width Overall Length Cutting Edge Cutting Edge Height HeadRLHBLFWFHFLHApplicableInsertFigClamp Set Shim Shim Wrench Upper Surface Lower SurfaceScrewfor ShimsWrenchWrenchNm DTGN R/L 2525M16-R24 ● ● 25 25 150 32 25 32 1DTGN R/L 3225P16-R24 ●3225 170323232○NC-TNGA1604○○1SCP-1DTGN R/L 3232P16-R24 ●3232 17040323215.0TNS1604-R24 BFTX0307NTRX10(*)LH040LH025 *Dedicated tool holder for 1.6mm/2.0mm/2.4mm nose radius inserts. Other sizes cannot be used. *Wrench for shim is sold separately from the main body. Clamp Set Parts C44 91° DTFN Fig 1 91˚ Facing LH-5˚ LF Insert L107 -5˚ (1) 3NC-TNGA160416 (4) 6NC-TNGA160416 (2) 3NC-TNGA160420 (5) 6NC-TNGA160420 Figure shows right-hand (R) tool. (3) 3NC-TNGA160424 (6) 6NC-TNGA160424 Holder Parts  Dimensions (mm) Cat. No. Stock Height Width Overall Length Cutting Edge Cutting Edge Height HeadRLHBLFWFHFLHApplicableInsertFigClamp Set Shim Shim Wrench Upper Surface Lower SurfaceScrewfor ShimsWrenchWrenchNm DTFN R/L 2525M16-R24 ● ● 25 25 150 32 25 30 ○NC-TNGA1604○○ 1 SCP-1 5.0 TNS1604-R24 BFTX0307N TRX10(*) LH040 LH025 *Dedicated tool holder for 1.6mm/2.0mm/2.4mm nose radius inserts. Other sizes cannot be used. *Wrench for shim is sold separately from the main body. Clamp Set Parts C44 L106 N m Recommended Tightening Torque (N·m)
