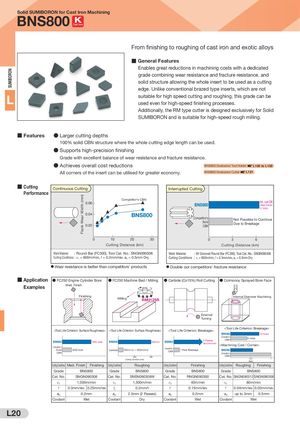

SUMIBORON Flank Wear Width (mm) Solid SUMIBORON for Cast Iron Machining BNS800 Cast Iron From finishing to roughing of cast iron and exotic alloys ■ General Features Enables great reductions in machining costs with a dedicated grade combining wear resistance and fracture resistance, and solid structure allowing the whole insert to be used as a cutting edge. Unlike conventional brazed type inserts, which are not L suitable for high speed cutting and roughing, this grade can beused even for high-speed finishing processes. Additionally, the RM type cutter is designed exclusively for Solid SUMIBORON and is suitable for high-speed rough milling. ■ Features ● Larger cutting depths 100% solid CBN structure where the whole cutting edge length can be used. ● Supports high-precision finishing Grade with excellent balance of wear resistance and fracture resistance. ● Achieves overall cost reductions BNS800 Dedicated Tool Holder L100 to L102 All corners of the insert can be utilised for greater economy. BNS800 Dedicated Cutter L121 ■ Cutting Continuous Cutting Interrupted Cutting Performance Competitor's CBN0.06FF BNS800 Int. cut OK(Wear Amount D 0.14mm) 0.04 F DFD BNS800FD0.02D Competitor's Not Possible to ContinueSolidDue to BreakageCBN 0 10 20 30 0 3 6 Cutting Distance (km) Cutting Distance (km) Work Material : Round Bar (FC300), Tool Cat. No.: SNGN090308 Work Material : 6V Grooved Round Bar (FC300), Tool Cat. No.: SNGN090308 Cutting Conditions : vc = 800m/min, f = 0.2mm/rev, ap = 0.5mm Dry Cutting Conditions : vc = 600m/min, f = 0.3mm/rev, ap = 0.5mm Dry ● Wear resistance is better than competitors' products ● Double our competitors' fracture resistance ■ Application ● FC250 Engine Cylinder Bore ● FC250 Machine Bed / Milling ● Carbide (Co15%) Roll Cutting ● Colmonoy Sprayed Bore Face Examples Med. Finish Finishing Milling RM3125R Internal Diameter Machining External Turning BNS800 10 holes Competitor's BNS800 7500 bore BNS800 400min BNS800 5 Passes CBN 6 holesAble to Continue Further Competitor'sSolid 2500 boreCBN Carbide 60min (vc = 500m/min) Competitor'sCBN 1 Pass Breakage BNS800Competitor's 200 400 CBN Cutting Duration (min) 0.5 1 Ratio Cutting Conditions Med. Finish Finishing Cutting Conditions Roughing Cutting Conditions Finishing Cutting Conditions Roughing Finishing Grade BNS800 Grade BNS800 Grade BNS800 Grade BNS800 Cat. No. SNGN090308 Cat. No. SNEN090308W Cat. No. RNGN090300 Cat. No. SNGN090312 SNGN090308 vc 1,000m/min vc 1,500m/min vc 40m/min vc 80m/min f 0.3mm/rev 0.25mm/rev fz 0.2mm/t f 0.15mm/rev f 0.04mm/rev 0.03mm/rev ap 0.2mm ap 2.5mm (2 Passes) ap 0.2mm ap up to 3mm 0.5mm Coolant Wet Coolant Dry Coolant Wet Coolant Wet L20
