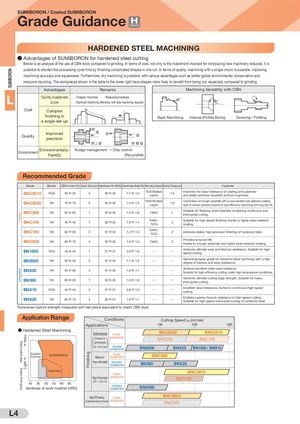

SUMIBORON CoatedUncoatedInterrupted CuttingContinuous Cutting HeavyLight Finishing FF SUMIBORON / Coated SUMIBORON Grade Guidance Hardened Steel HARDENED STEEL MACHINING ● Advantages of SUMIBORON for hardened steel cutting Below is an analysis of the use of CBN tools compared to grinding. In terms of cost, not only is the investment involved for introducing new machinery reduced, it is possible to shorten the processing cycle time by finishing complicated shapes in one run. In terms of quality, machining with a single chuck is possible, improving machining accuracy and squareness. Furthermore, dry machining is possible, with various advantages such as better global environmental conservation and resource recycling. The workpieces shown in the table to the lower right have shapes more likely to benefit from being cut, especially compared to grinding. Advantages Remarks Machining Versatility with CBN L Facility investment · Cheaper machines · Reduced processesis low· Improved machining efficiency with less machining required Cost Complex finishing in Taper Machining Internal (Pro le) Boring Grooving / Pro ling a single set-up Quality Improvedprecision FFFF FF Environment Environmentally- friendly Sludge management → Chip control (Recyclable) Recommended Grade Grade Binder CBN Content (%) Grain Size (μm) Hardness HV (GPa) Transverse Rupture Strength (GPa) Main Coating Components Coating Thickness (μm) Features BNC2010 TiCN 50 to 55 2 30 to 32 1.1 to 1.2 TiCN MultipleLayers1.5 Improves the wear resistance of coating and substrateand stably achieves excellent surface roughness. BNC2020 TiN 70 to 75 5 34 to 36 1.4 to 1.5 TiAlN MultipleLayers1.5 Combination of a tough substrate with a wear-resistant and adhesive coatinglayer to achieve general purpose to high-efficiency machining with long tool life BNC300 TiN 60 to 65 1 33 to 35 1.5 to 1.6 TiAIN 1 Suitable for finishing work materials combining continuous andinterrupted cutting. BNC100 TiN 40 to 45 1 29 to 32 1.0 to 1.1 TiAIN /TiCN 2 Suitable for high-speed finishing thanks to highly wear-resistantcoating. BNC160 TiN 60 to 65 3 31 to 33 1.2 to 1.3 TiAIN /TiCN 2 Achieves stable, high-precision finishing of hardened steel. BNC200 TiN 65 to 70 4 33 to 35 1.4 to 1.5 TiAIN 2 Provides long tool lifethanks to a tough substrate and highly wear-resistant coating. BN1000 TiCN 40 to 45 1 27 to 31 0.9 to 1.0 Q Q Achieves ultimate wear and fracture resistance. Suitable for high-speed cutting. BN2000 TiN 50 to 55 2 31 to 34 1.1 to 1.2 Q Q General-purpose grade for hardened steel machining with a highdegree of fracture and wear resistance. BNX20 TiN 55 to 60 3 31 to 33 1.0 to 1.1 Q Q Achieves excellent crater wear resistance.Suitable for high-efficiency cutting under high-temperature conditions. BN350 TiN 60 to 65 1 33 to 35 1.5 to 1.6 Q Q Achieves ultimate cutting edge strength. Suitable for heavyinterrupted cutting. BNX10 TiCN 40 to 45 3 27 to 31 0.9 to 1.0 Q Q Excellent wear resistance. Suited to continuous high-speedcutting. BNX25 TiN 65 to 70 4 29 to 31 1.0 to 1.1 Q Q Exhibits superior fracture resistance in high-speed cutting.Suitable for high-speed interrupted cutting of hardened steel. Transverse rupture strength measured with test piece equivalent to insert CBN layer. Application Range Conditions Cutting Speed vC (m/min) Applications 100 200 300 ● Hardened Steel Machining General-purpose Coated BNC2020 BNC2010 ( Continuous to light interrupted ) SUMIBORON BNC200 BNC100 Rz = 3.2 or more UncoatedSUMIBORON BN2000 BNX20 BN1000 / BNX10 CoatedCermet SUMIBORON CoatedMedium toSUMIBORON BNC300 Heavy Interrupted UncoatedSUMIBORON BN350 BNX25 Ceramics Coated BNC2010 High Precision SUMIBORON BNC160 40 45 50 55 60 65 (Rz = 1.6 to 3.2) Hardness of work material (HRC) UncoatedSUMIBORON BN2000 High Efficiency Coated BNC2020 (Carburised layer removal) SUMIBORON BNC200 L4
