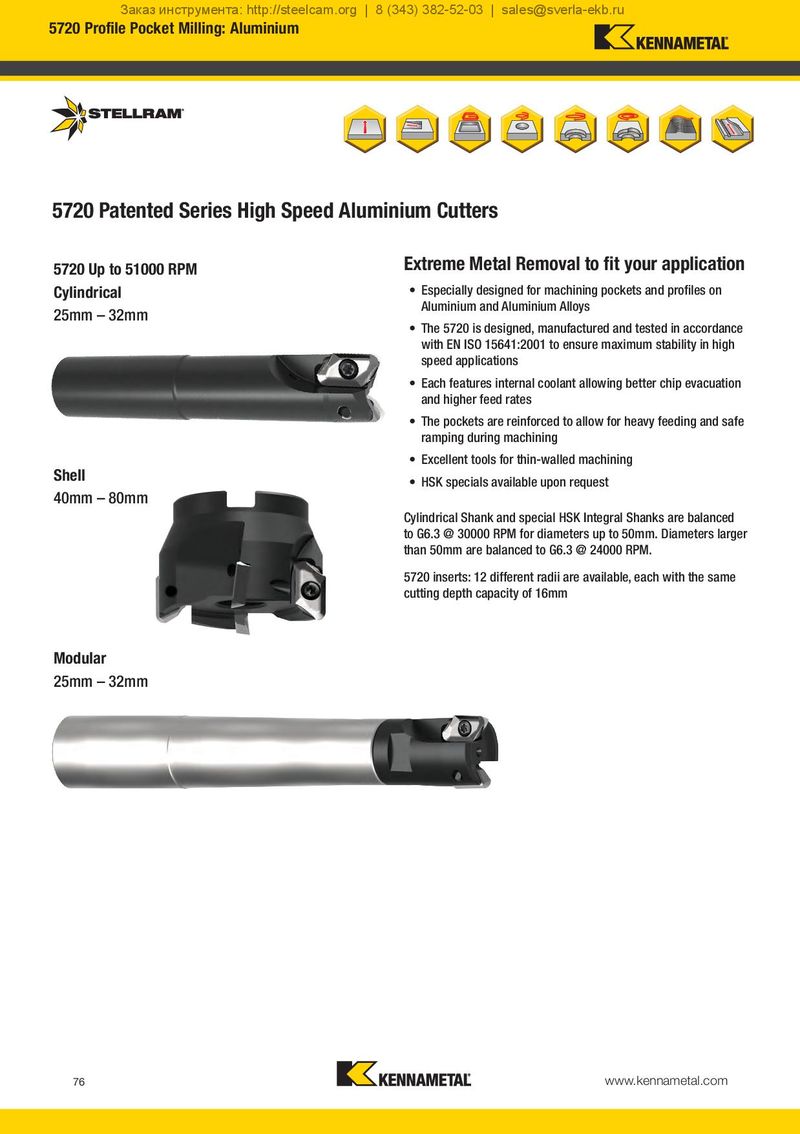

Заказ инструмента: http://steelcam.org | 8 (343) 382-52-03 | sales@sverla-ekb.ru 5720 Profile Pocket Milling: Aluminium 5720 Patented Series High Speed Aluminium Cutters 5720 Up to 51000 RPM Extreme Metal Removal to fit your application Cylindrical • Especially designed for machining pockets and profiles on 25mm – 32mm Aluminium and Aluminium Alloys • The 5720 is designed, manufactured and tested in accordance with EN ISO 15641:2001 to ensure maximum stability in high speed applications • Each features internal coolant allowing better chip evacuation and higher feed rates • The pockets are reinforced to allow for heavy feeding and safe ramping during machining • Excellent tools for thin-walled machining Shell • HSK specials available upon request 40mm – 80mm Cylindrical Shank and special HSK Integral Shanks are balanced to G6.3 @ 30000 RPM for diameters up to 50mm. Diameters larger than 50mm are balanced to G6.3 @ 24000 RPM. 5720 inserts: 12 different radii are available, each with the same cutting depth capacity of 16mm Modular 25mm – 32mm 76 www.kennametal.com
