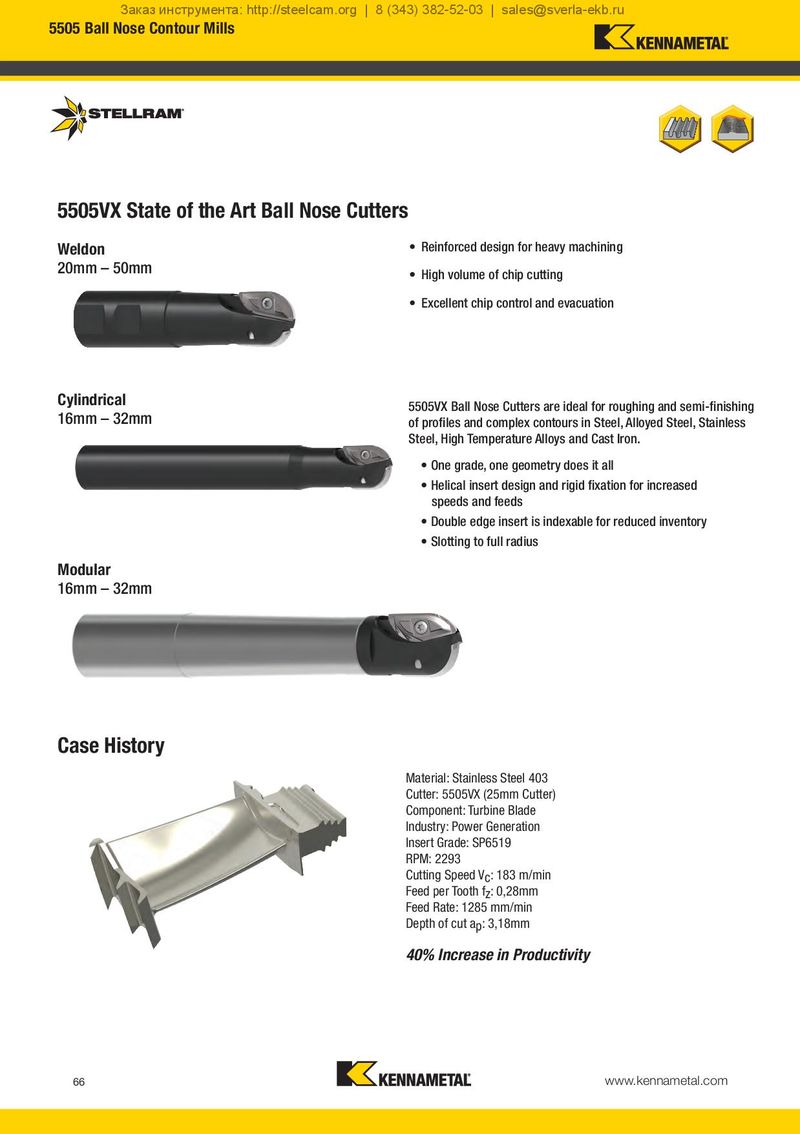

Каталог Stellram высокопроизводительные фрезерные системы - страница 68

Заказ инструмента: http://steelcam.org | 8 (343) 382-52-03 | sales@sverla-ekb.ru 5505 Ball Nose Contour Mills 5505VX State of the Art Ball Nose Cutters Weldon • Reinforced design for heavy machining 20mm – 50mm • High volume of chip cutting • Excellent chip control and evacuation Cylindrical 5505VX Ball Nose Cutters are ideal for roughing and semi-finishing 16mm – 32mm of profiles and complex contours in Steel, Alloyed Steel, Stainless Steel, High Temperature Alloys and Cast Iron. • One grade, one geometry does it all • Helical insert design and rigid fixation for increased speeds and feeds • Double edge insert is indexable for reduced inventory • Slotting to full radius Modular 16mm – 32mm Case History Material: Stainless Steel 403 Cutter: 5505VX (25mm Cutter) Component: Turbine Blade Industry: Power Generation Insert Grade: SP6519 RPM: 2293 Cutting Speed Vc: 183 m/min Feed per Tooth fz: 0,28mm Feed Rate: 1285 mm/min Depth of cut ap: 3,18mm 40% Increase in Productivity 66 www.kennametal.com
