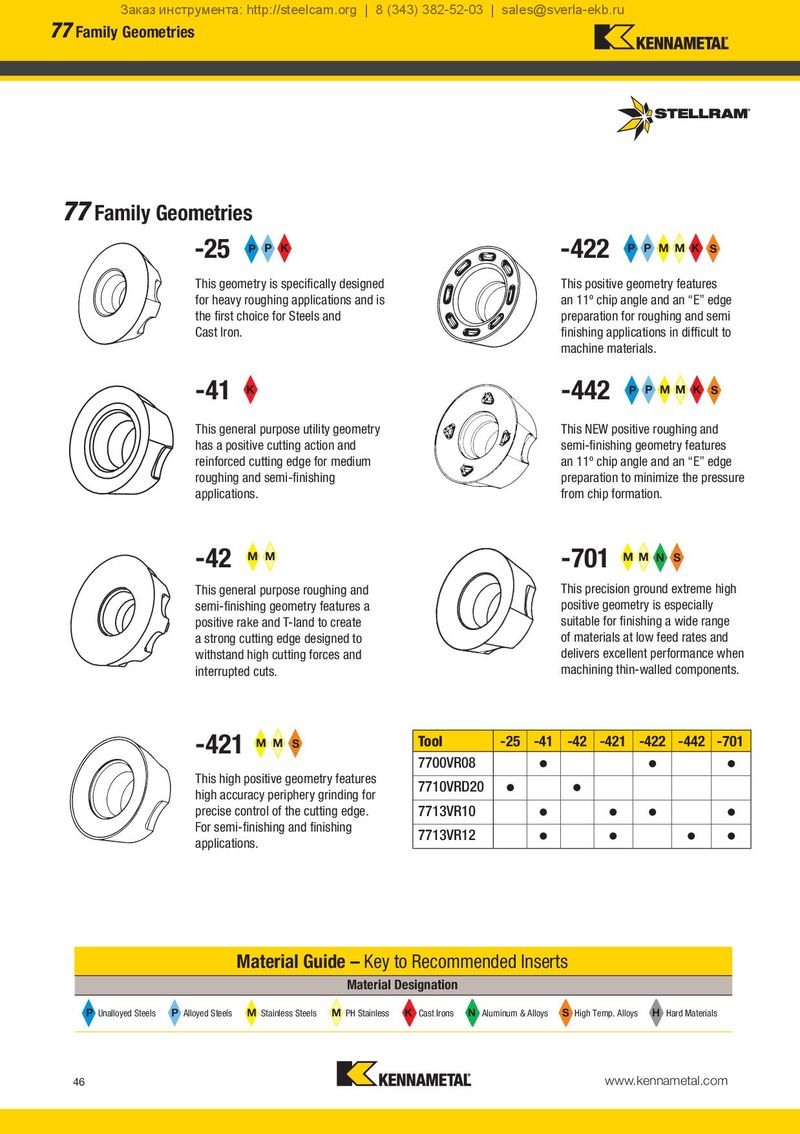

Каталог Stellram высокопроизводительные фрезерные системы - страница 48

Заказ инструмента: http://steelcam.org | 8 (343) 382-52-03 | sales@sverla-ekb.ru 77 Family Geometries 77 Family Geometries -25 P P K -422 P P M M K S This geometry is specifically designed This positive geometry features for heavy roughing applications and is an 11º chip angle and an “E” edge the first choice for Steels and preparation for roughing and semi Cast Iron. finishing applications in difficult to machine materials. -41 K -442 P P M M K S This general purpose utility geometry This NEW positive roughing and has a positive cutting action and semi-finishing geometry features reinforced cutting edge for medium an 11º chip angle and an “E” edge roughing and semi-finishing preparation to minimize the pressure applications. from chip formation. -42 M M -701 MM N S This general purpose roughing and This precision ground extreme high semi-finishing geometry features a positive geometry is especially positive rake and T-land to create suitable for finishing a wide range a strong cutting edge designed to of materials at low feed rates and withstand high cutting forces and delivers excellent performance when interrupted cuts. machining thin-walled components. -421 M M S Tool -25 -41 -42 -421 -422 -442 -701 7700VR08 • • • This high positive geometry features 7710VRD20 • • high accuracy periphery grinding for precise control of the cutting edge. 7713VR10 • • • • For semi-finishing and finishing 7713VR12 • • • • applications. Material Guide – Key to Recommended Inserts Material Designation P Unalloyed Steels P Alloyed Steels M Stainless Steels M PH Stainless K Cast Irons N Aluminum & Alloys S High Temp. Alloys H Hard Materials 46 www.kennametal.com
