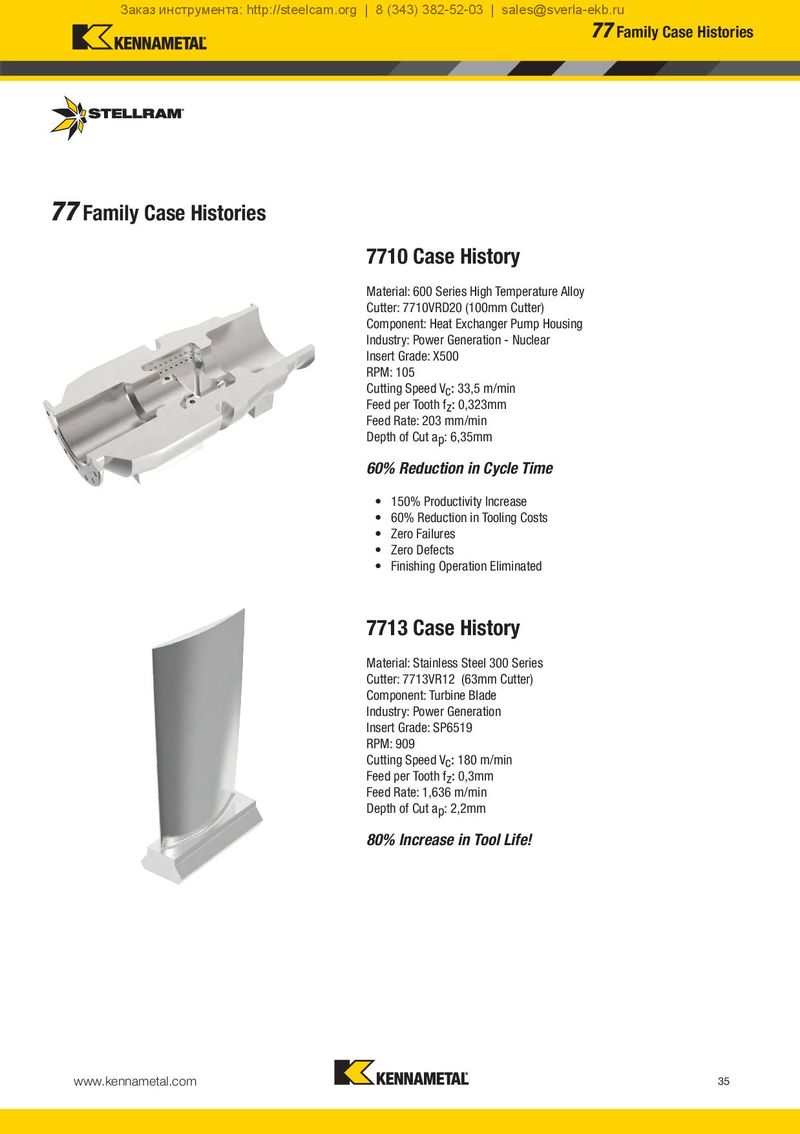

Заказ инструмента: http://steelcam.org | 8 (343) 382-52-03 | sales@sverla-ekb.ru 77 Family Case Histories 77 Family Case Histories 7710 Case History Material: 600 Series High Temperature Alloy Cutter: 7710VRD20 (100mm Cutter) Component: Heat Exchanger Pump Housing Industry: Power Generation - Nuclear Insert Grade: X500 RPM: 105 Cutting Speed Vc: 33,5 m/min Feed per Tooth fz: 0,323mm Feed Rate: 203 mm/min Depth of Cut ap: 6,35mm 60% Reduction in Cycle Time • 150% Productivity Increase • 60% Reduction in Tooling Costs • Zero Failures • Zero Defects • Finishing Operation Eliminated 7713 Case History Material: Stainless Steel 300 Series Cutter: 7713VR12 (63mm Cutter) Component: Turbine Blade Industry: Power Generation Insert Grade: SP6519 RPM: 909 Cutting Speed Vc: 180 m/min Feed per Tooth fz: 0,3mm Feed Rate: 1,636 m/min Depth of Cut ap: 2,2mm 80% Increase in Tool Life! www.kennametal.com 35
