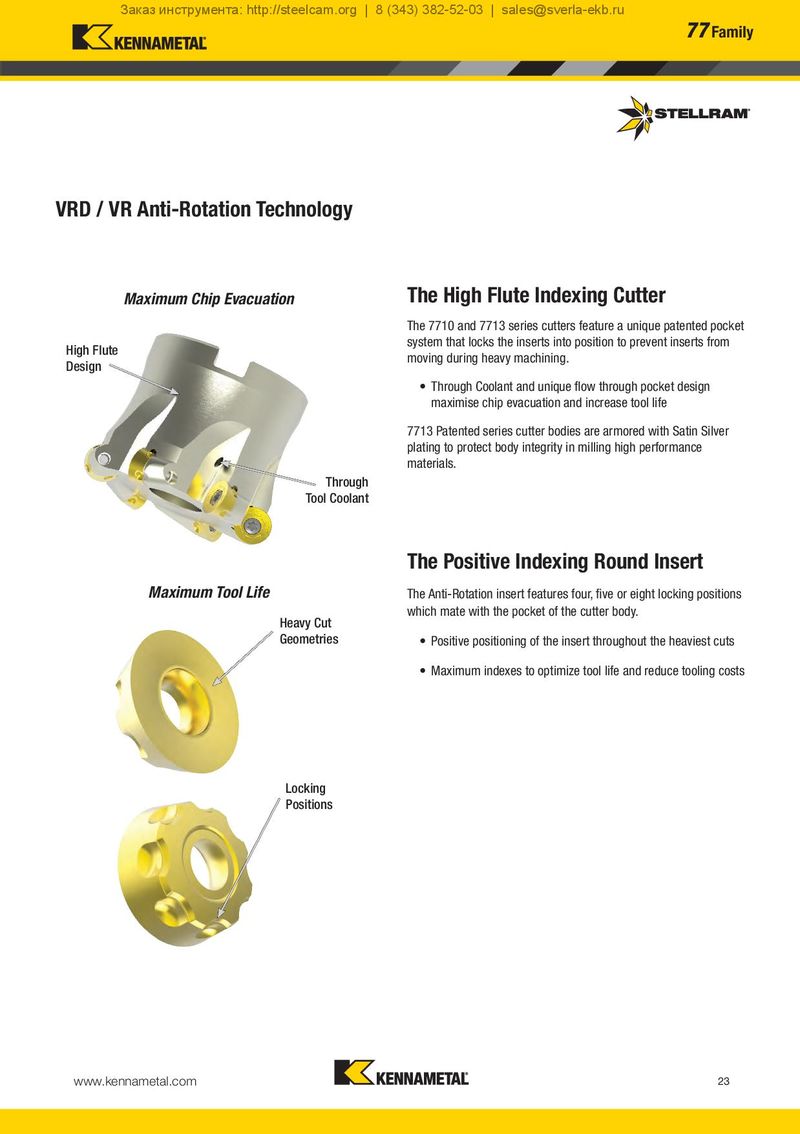

Заказ инструмента: http://steelcam.org | 8 (343) 382-52-03 | sales@sverla-ekb.ru 77 Family VRD / VR Anti-Rotation Technology Maximum Chip Evacuation The High Flute Indexing Cutter The 7710 and 7713 series cutters feature a unique patented pocket High Flute system that locks the inserts into position to prevent inserts from Design moving during heavy machining. • Through Coolant and unique flow through pocket design maximise chip evacuation and increase tool life 7713 Patented series cutter bodies are armored with Satin Silver plating to protect body integrity in milling high performance materials. Through Tool Coolant The Positive Indexing Round Insert Maximum Tool Life The Anti-Rotation insert features four, five or eight locking positions Heavy Cut which mate with the pocket of the cutter body. Geometries • Positive positioning of the insert throughout the heaviest cuts • Maximum indexes to optimize tool life and reduce tooling costs Locking Positions www.kennametal.com 23
