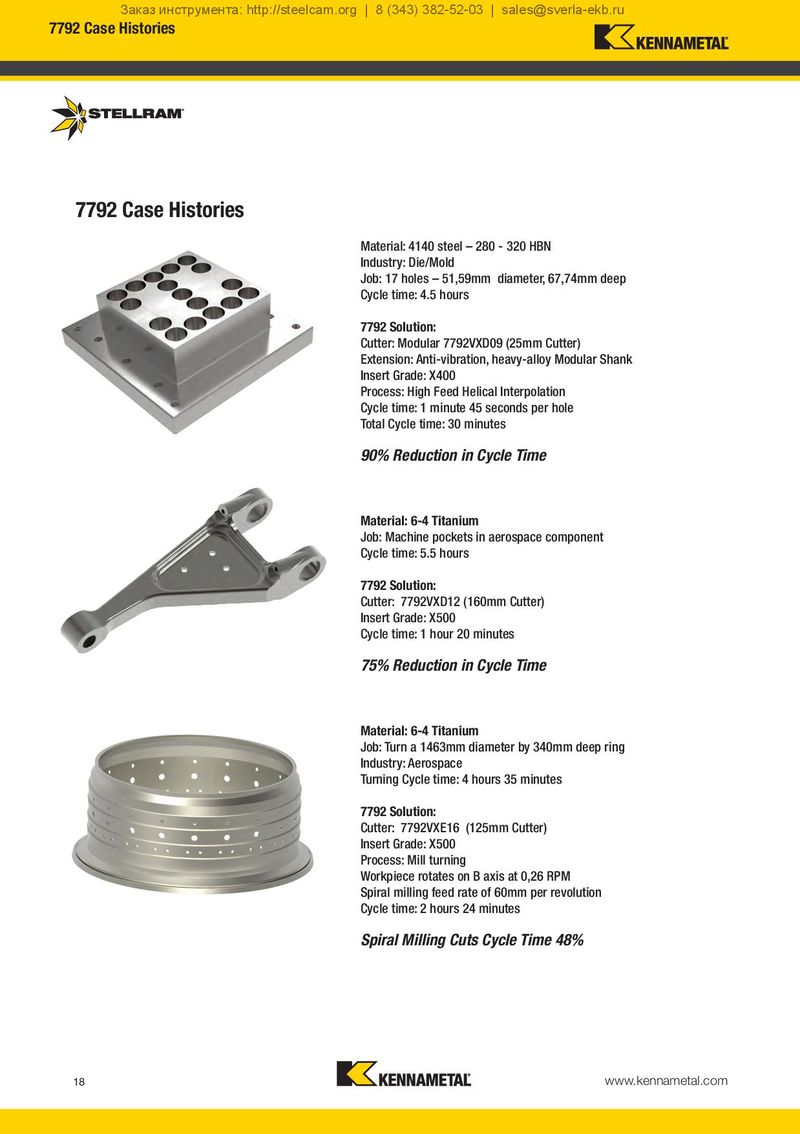

Заказ инструмента: http://steelcam.org | 8 (343) 382-52-03 | sales@sverla-ekb.ru 7792 Case Histories 7792 Case Histories Material: 4140 steel – 280 - 320 HBN Industry: Die/Mold Job: 17 holes – 51,59mm diameter, 67,74mm deep Cycle time: 4.5 hours 7792 Solution: Cutter: Modular 7792VXD09 (25mm Cutter) Extension: Anti-vibration, heavy-alloy Modular Shank Insert Grade: X400 Process: High Feed Helical Interpolation Cycle time: 1 minute 45 seconds per hole Total Cycle time: 30 minutes 90% Reduction in Cycle Time Material: 6-4 Titanium Job: Machine pockets in aerospace component Cycle time: 5.5 hours 7792 Solution: Cutter: 7792VXD12 (160mm Cutter) Insert Grade: X500 Cycle time: 1 hour 20 minutes 75% Reduction in Cycle Time Material: 6-4 Titanium Job: Turn a 1463mm diameter by 340mm deep ring Industry: Aerospace Turning Cycle time: 4 hours 35 minutes 7792 Solution: Cutter: 7792VXE16 (125mm Cutter) Insert Grade: X500 Process: Mill turning Workpiece rotates on B axis at 0,26 RPM Spiral milling feed rate of 60mm per revolution Cycle time: 2 hours 24 minutes Spiral Milling Cuts Cycle Time 48% 18 www.kennametal.com
