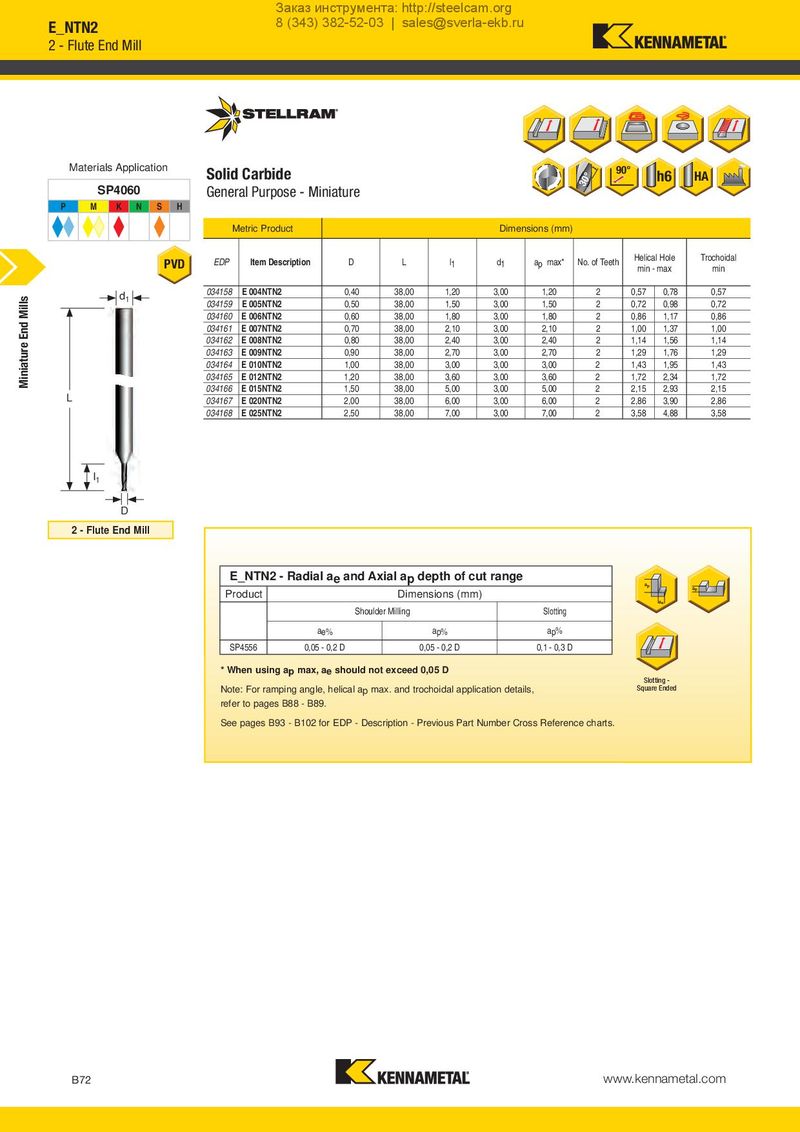

Каталог Stellram твердосплавные цельные фрезы - страница 73

Предыдущая страница Следующая страница

Навигация

Materials ApplicationSolid Carbide90°h6HA
SP4060General Purpose - Miniature

P M K N S H

Metric ProductDimensions (mm)
EDPItem DescriptionDLl1d1ap maxNo. of TeethHelica min -l Hole maxTrochoidal min
034158E 004NTN20,4038,001,203,001,2020,570,780,57
034159E 005NTN20,5038,001,503,001,5020,720,980,72
034160E 006NTN20,6038,001,803,001,8020,861,170,86
034161E 007NTN20,7038,002,103,002,1021,001,371,00
034162E 008NTN20,8038,002,403,002,4021,141,561,14
034163E 009NTN20,9038,002,703,002,7021,291,761,29
034164E 010NTN21,0038,003,003,003,0021,431,951,43
034165E 012NTN21,2038,003,603,003,6021,722,341,72
034166E 015NTN21,5038,005,003,005,0022,152,932,15
034167E 020NTN22,0038,006,003,006,0022,863,902,86
034168E 025NTN22,5038,007,003,007,0023,584,883,58

d

I

1

D

2 - Flute End Mill

E_NTN2 - Radial ae and Axial ap depth of cut range

ap

Product Dimensions (mm) ap

Shoulder Milling Slotting ae

ae% ap% ap%

SP4556 0,05 - 0,2 D 0,05 - 0,2 D 0,1 - 0,3 D

* When using ap max, ae should not exceed 0,05 D Slotting - Note: For ramping angle, helical ap max. and trochoidal application details, Square Ended refer to pages B88 - B89.

See pages B93 - B102 for EDP - Description - Previous Part Number Cross Reference charts.
