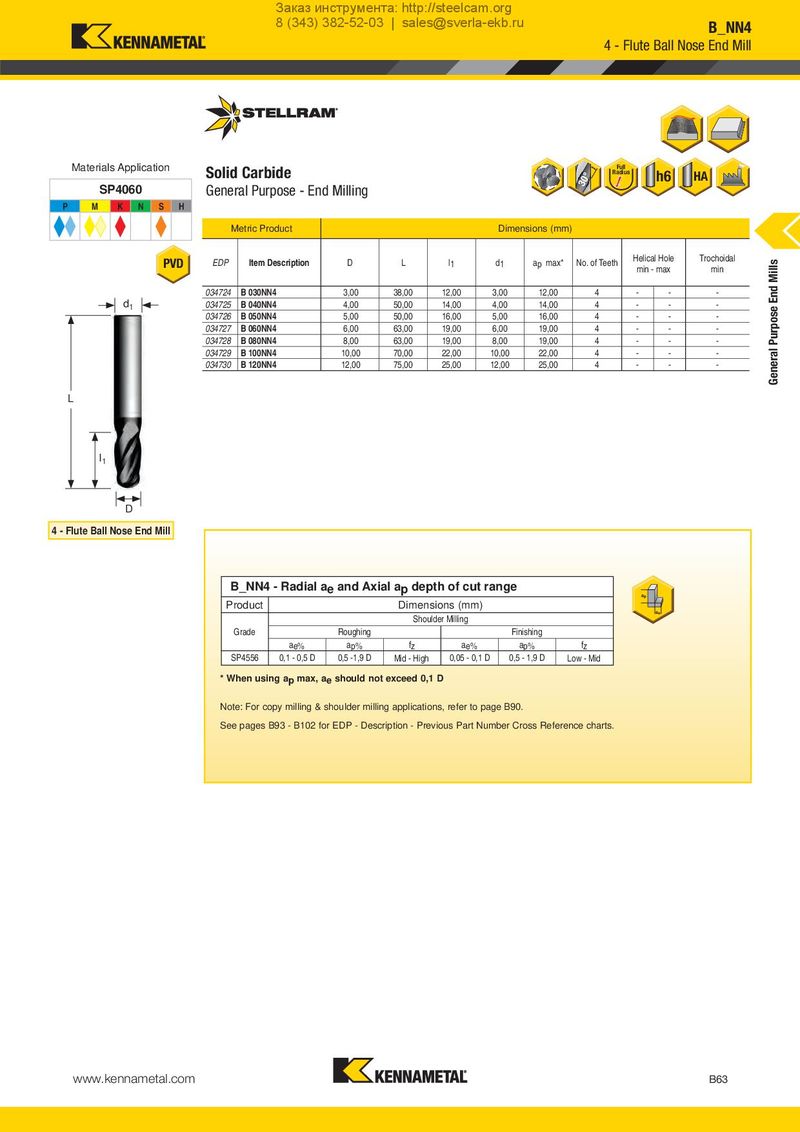

Каталог Stellram твердосплавные цельные фрезы - страница 64

Предыдущая страница Следующая страница

Навигация

Materials ApplicationSolid CarbideFull h6
RadiusHA
SP4060General Purpose - End Milling

P M K N S H

Metric ProductDimensions (mm)
EDPItem DescriptionDLl1d1ap maxNo. of TeethHelica min -l Hole maxTrochoidal min
034724B 030NN43,0038,0012,003,0012,004---
034725B 040NN44,0050,0014,004,0014,004---
034726B 050NN45,0050,0016,005,0016,004---
034727B 060NN46,0063,0019,006,0019,004---
034728B 080NN48,0063,0019,008,0019,004---
034729B 100NN410,0070,0022,0010,0022,004---
034730B 120NN412,0075,0025,0012,0025,004---

1

L

I

1

D

4 - Flute Ball Nose End Mill

B_NN4 - Radial ae and Axial ap depth of cut range

ap

Product Dimensions (mm)

Shoulder Milling ae

Grade Roughing Finishing

ae%ap%fzae%ap%fz
SP45560,1 - 0,5 D0,5 -1,9 DMid - High0,05 - 0,1 D0,5 - 1,9 DLow - Mid

* When using ap max, ae should not exceed 0,1 D Note: For copy milling & shoulder milling applications, refer to page B90. See pages B93 - B102 for EDP - Description - Previous Part Number Cross Reference charts.
