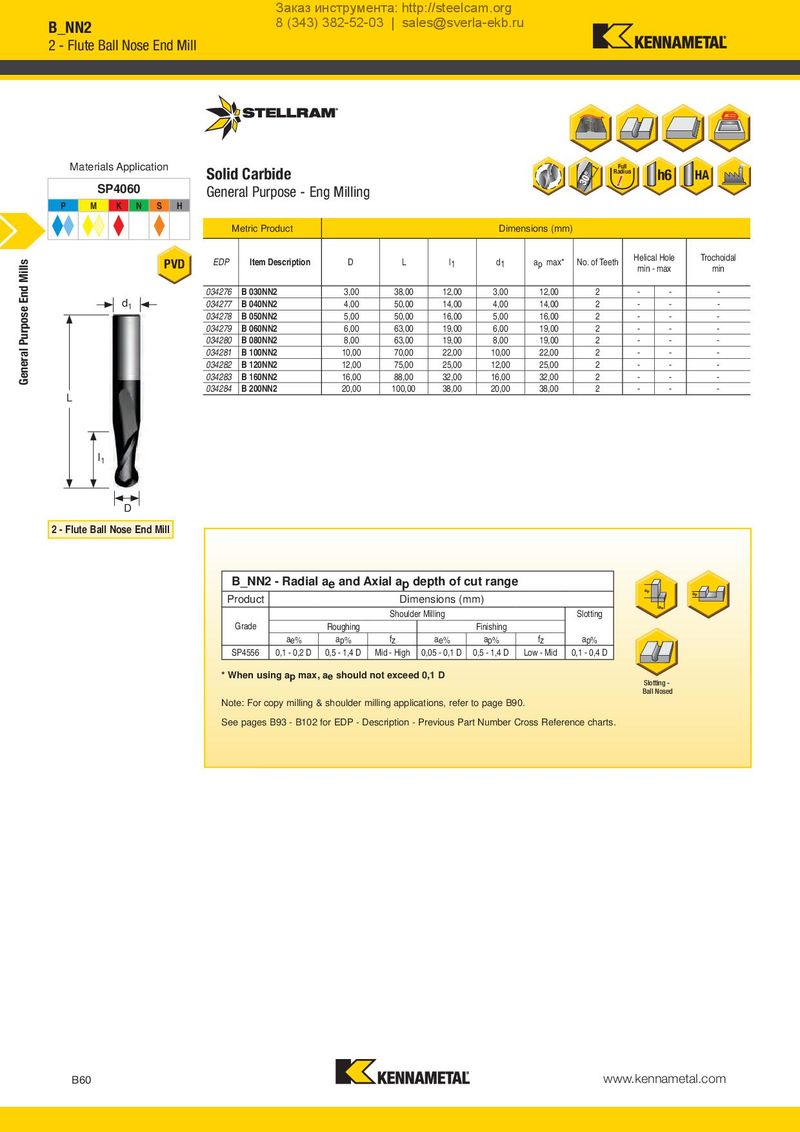

Materials ApplicationSolid CarbideFull h6
RadiusHA
SP4060General Purpose - Eng Milling

P M K N S H

Metric ProductDimensions (mm)
EDPItem DescriptionDLl1d1ap maxNo. of TeethHelic minal Hole - maxTrochoidal min
034276B 030NN23,0038,0012,003,0012,002---
034277B 040NN24,0050,0014,004,0014,002---
034278B 050NN25,0050,0016,005,0016,002---
034279B 060NN26,0063,0019,006,0019,002---
034280B 080NN28,0063,0019,008,0019,002---
034281B 100NN210,0070,0022,0010,0022,002---
034282B 120NN212,0075,0025,0012,0025,002---
034283B 160NN216,0088,0032,0016,0032,002---
034284B 200NN220,00100,0038,0020,0038,002---

L

I

1

D

2 - Flute Ball Nose End Mill

B_NN2 - Radial ae and Axial ap depth of cut range

Product Dimensions (mm)

Shoulder Milling Slotting

Grade Roughing Finishing

ae%ap%fzae%ap%fzap%
SP45560,1 - 0,2 D0,5 - 1,4 DMid - High0,05 - 0,1 D 0,5 - 1,4 DLow - Mid0,1 - 0,4 D

* When using ap max, ae should not exceed 0,1 D Note: For copy milling & shoulder milling applications, refer to page B90. See pages B93 - B102 for EDP - Description - Previous Part Number Cross Reference charts.

ap ap ae

Slotting - Ball Nosed
