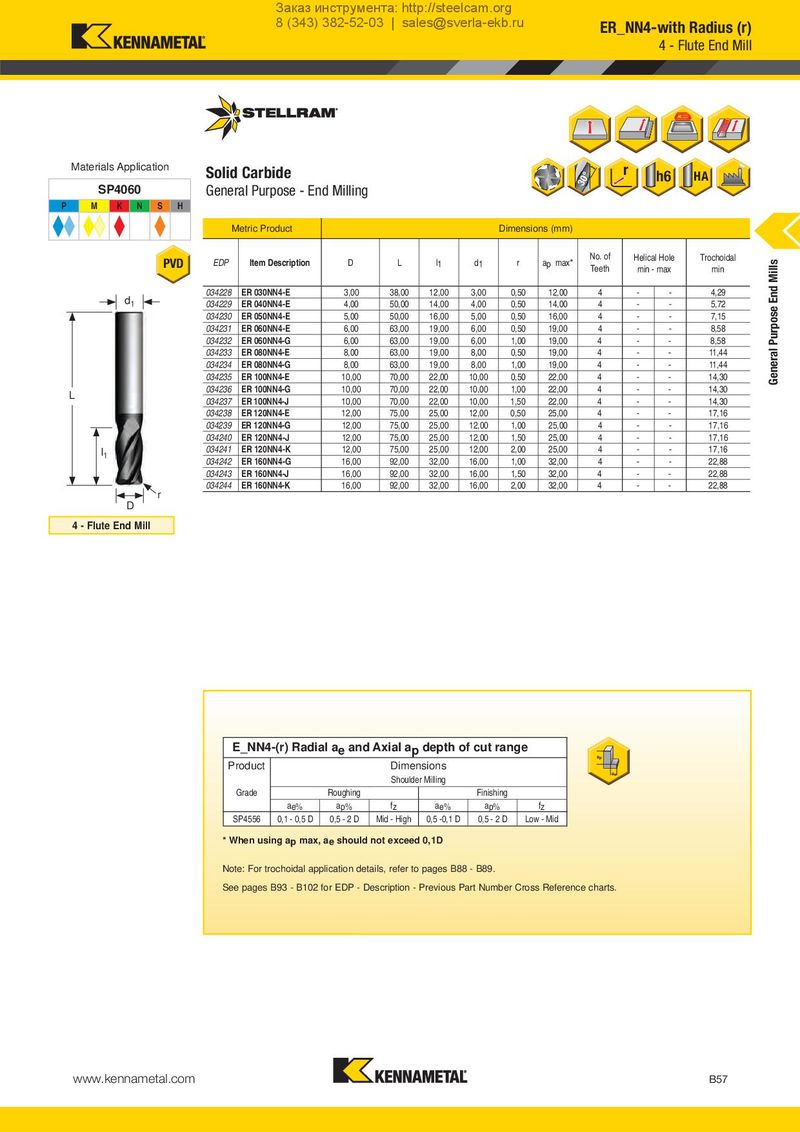

8 (343) 382-52-03 | sales@sverla-ekb.ru ER_NN4-with Radius (r)

SP4060 Materials ApplicationSolid GeneCarbide ral Purpose - EndMillingr h6HA
P M K N S H
Metric ProductDimensions (mm)
PVDEDPItem DescriptionDLl1d1rap maxNo. of TeethHelical Hole min - maxTrochoidal min
034228ER 030NN4-E3,0038,0012,003,000,5012,004- -4,29
d1034229ER 040NN4-E4,0050,0014,004,000,5014,004- -5,72
034230ER 050NN4-E5,0050,0016,005,000,5016,004- -7,15
034231ER 060NN4-E6,0063,0019,006,000,5019,004- -8,58
034232ER 060NN4-G6,0063,0019,006,001,0019,004- -8,58
034233ER 080NN4-E8,0063,0019,008,000,5019,004- -11,44
034234ER 080NN4-G8,0063,0019,008,001,0019,004- -11,44
034235ER 100NN4-E10,0070,0022,0010,000,5022,004- -14,30
034236ER 100NN4-G10,0070,0022,0010,001,0022,004- -14,30
L034237ER 100NN4-J10,0070,0022,0010,001,5022,004- -14,30
034238ER 120NN4-E12,0075,0025,0012,000,5025,004- -17,16
034239ER 120NN4-G12,0075,0025,0012,001,0025,004- -17,16
034240ER 120NN4-J12,0075,0025,0012,001,5025,004- -17,16
I034241ER 120NN4-K12,0075,0025,0012,002,0025,004- -17,16
1034242ER 160NN4-G16,0092,0032,0016,001,0032,004- -22,88
034243ER 160NN4-J16,0092,0032,0016,001,5032,004- -22,88
034244ER 160NN4-K160092003200160020032004- -2288
D r 4 - Flute End Mill,,,,,,,

E_NN4-(r) Radial ae and Axial ap depth of cut range

ap

Product Dimensions

Shoulder Milling ae

Grade Roughing Finishing

ae%ap%fzae%ap%fz
SP45560,1 - 0,5 D0,5 - 2 DMid - High0,5 -0,1 D0,5 - 2 DLow - Mid

* When using ap max, ae should not exceed 0,1D Note: For trochoidal application details, refer to pages B88 - B89. See pages B93 - B102 for EDP - Description - Previous Part Number Cross Reference charts.
